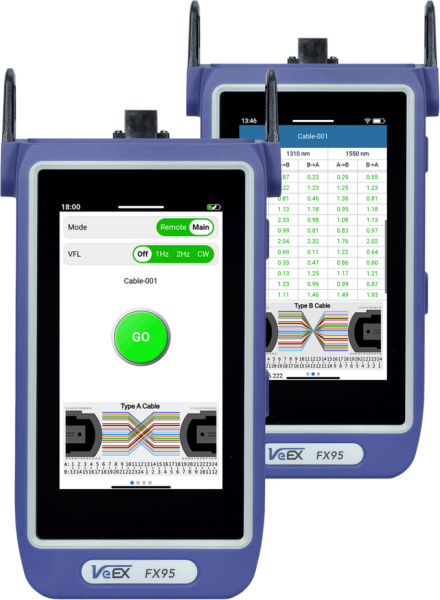

FX95

MPO Optical Loss Test Set (OLTS)

Automated Bi-Directional Tier 1 Certification

The FX95 is the industry’s first fully automated bi-directional optical loss test set that can perform all the test requirements for Tier 1 (Basic) certification using a native MPO-24 APC interface per ANSI/TIA-568.3-E through the integration of source and power meter in each device. Multi-fiber certification with loss, polarity, and length measurements with on-board certification standards can be accomplished in 24 seconds for 24 fibers.

The VeEX FX95 Bidirectional MPO Optical Loss Test Set (OLTS) is designed specifically to address these challenges. It provides automated bidirectional insertion loss, polarity, and length testing for MPO-based fiber links with a single button press, and generates centralized reports for Tier 1 certification workflows.



  • Support 8/12/24 fiber-based testing
  • Dual wavelength 1310/1550 source
  • Integrated source and meter in native MPO-24 APC interface
  • Insertion Loss measurement
  • Smart polarity type validation and mapping (Type A, B and C)
  • Up to 100 km length measurement
  • Unidirectional or bidirectional
  • In-line visual fault locator (VFL) for MPO cable tracing
  • Smart automated referencing for Type A/B/C
  • Pass/fail based on network standards or user defined
  • Report format in .PDF or .CSV
