Transmission Testers for sub 16Gbps technologies

Choose from 5 different VeEX portable models and options that can test different transmission technologies up to 16Gbps on multiple of ports simultaneously.

All rates/technologies/features listed in the selection table below are license upgrade-able at any time unless otherwise stated.

Loopback devices up to 10G also available.

Technology MTX150X MTX150 MTTPlus-340 TX340 RXT-3400
10G Dual Port Single Port 2 or 4 ports 2 or 4 ports Dual up to 10G
100M/1G Dual Port Single Port 2 or 4 Ports 2 or 4 Ports Dual Ports
OTN – – 2 or 4 Ports 2 or 4 Ports OTU2e Dual up to OTU2/2e
CPRI – – 2 or 4 Ports
up to 12G		 2 or 4 Ports
up to 12G		 Dual up to 12G
SDH/PDH – Single Port
up to STM-64		 2 or 4 Ports
up to STM-64		 2 or 4 Ports
Up to STM-64		 Dual up to STM-64
Fiber Channel Dual Port

1/2/4 G

 Single Port

1/2/4G

 2 or 4 Ports
Up to 16G		 2 or 4 Ports
up to 16G		 Dual up to 16G
C37.94 – Yes 2 or 4 Ports 2 or 4 Ports Dual Port
Datacom* – V.11/V.24
V35/V36		 – – –
RFC2544 / Y.1564 Yes Yes Yes Yes Yes
Layer 4 Testing & RFC6349 Yes Yes Yes Yes Yes
IPSec / L2CP / LACP L2CP – – Yes Yes*
Sync Testing – – up to 10G up to 10G up to 10G
Atomic Clock – – – Factory-fit Option Factory-fit Option
Module – – Yes
MTTPlus Chassis		 – Yes
RXT-1200 Chassis

*factory fit option



...

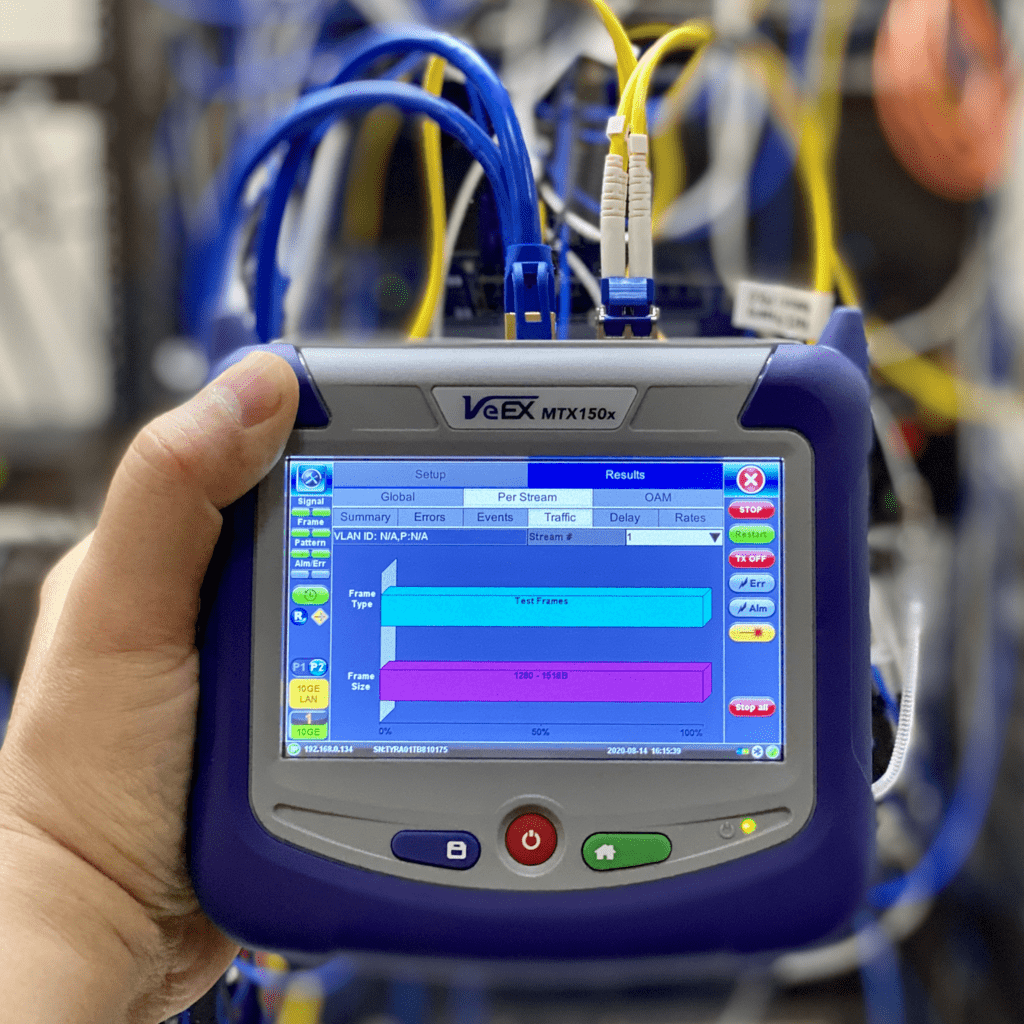

The MTX150x is a fully-integrated and self-contained Ethernet services test solution for Layer 1-to-4+ applications and Fibre Channel (SAN). This rugged and ultra-portable field hand-held test set can be configured with interfaces and technologies required by field technicians to install, verify, maintain and troubleshoot Metro Ethernet links, Business services, Internet Access and other packet-base services up to 10 Gbps.

  • Complete Ethernet (LAN/WAN) and Fibre Channel (SAN) Testing
  • Dual SFP+ Optical Interfaces for 100/1000BASE-X, 10GBASE-X and 4/2/1GFC
  • Dual RJ45 for 10/100/1000BASE-T

Ethernet

  • Dual-port testing capabilities
  • Throughput, BERT, IPv4/IPv6, Loopbacks, NetWiz, Ping, trace route, Scan, L2CP Transparency, Errors, Alarms, Events, Delay, Test Profile Auto Scripting/Sequencer
  • RFC2544 Throughput, latency, frame loss and back to back tests
  • V-SAM test suite compliant with ITU-T Y.1564 standard
  • Q-in-Q (VLAN stacking), MPLS, MPLS-TP, PBB, and PPPoE support
  • 8 Streams, 3 VLAN, 3 MPLS, TCP/UDP
  • Layer 4+ test suite: V-TEST (speed test), V-FTP, RFC6349 V-PERF upload & download tests

Fibre Channel

  • Dual-port Storage Area Ntworks (SAN) testing
  • Throughput, BERT, Loopback, SDT, Errors, Alarms, Events, Delay
  • RFC2544: Throughput, latency, frame loss, back to back tests

MTX150X Datasheet

VeEX MTX150 is an integrated and self-contained multi-service test solution  up to 10G for Ethernet, SDH, PDH, DSn, SyncE, Mobile Backhaul, and Fibre Channel (SAN).

  • Ethernet, Fibre Channel, SDH, PDH/DSn, Datacom and G.703 Testing
  • SFP Optical Interface for 100M/1G/10G, 4/2/1GFC, STM64/16/4/1, STS48/12/3/1
  • RJ45 for 10/100/1000Base-T
  • BNC (75Ω unbalanced) for E1, E2, E3, E4, DS1, DS3, STM1, STM0, STS1 and STS3
  • RJ48 (120Ω balanced) for DS1, E1 and G.703 64k Co-directional
  • Datacom interface (DVI) for RS232 async, RS232/V.24 sync, X.21, V.35 and RS449/ V.36 (422/423), with DTE, DCE and Monitor modes

MTX150 Product Page

The MTTplus-320 Multi-Service Module is a full-featured test solution up to 4 ports for OTN, SONET, SDH, PDH, DSn, 64k Codirectional, C37.94, Carrier Ethernet, Fibre Channel, SyncE, PTP and CPRI/OBSAI.

  • All-in-one multi-service test solution, from 64 kbps to 10 Gbps
  • Transport, Core, Metro, SAN, Backhaul and Fronthaul applications
  • Supports independent and simultaneous measurements

MTTPLUS-340 Module Product Page

MTTplus modular Product Page



(Discontinued)



The TX340s hardware option for the TX300s portable test platform offers advanced test solutions for OTN, SONET/SDH, PDH/DSn, Carrier Ethernet, Fibre Channel and CPRI/OBSAI. This factory-installed hardware option allows flexibility to fit any application, for example, the addition of a second TX340s, 100G or OTDR module, to be installed concurrently in the same test platform.

  • Flexible, all-in-one multi-service test solution, from 64 kbps to 16 Gbps (can be combined with 100G and OTDR modules)
  • Transport, Core, Metro, SAN, Backhaul and Fronthaul applications
  • Supports up to four test port groups with independent and simultaneous measurements
  • Test cards summary provides an overview of up to four running tests, as well as test application switching and management functions

TX340 Product Page



RXT6400 - 400GE Test Module

The RXT-3400 add-on module for the versatile RXT test platform offers state-of-the-art support for Access, Metro, Core, Transport, Carrier Ethernet, Backhaul, Fronthaul and SAN technologies up to 16GFC. VeEX RXT is the industry’s most flexible, compact, complete and future-proof hand-held test solution, from 64k to 400GE, including Fiber Optics and WDM.

  • Flexible, all-in-one multi-service test solution, from 64 kbps to 14 Gbps (can be combined with 400G, 100G/40G, OTDR, and OSA modules)
  • Offers two fully independent test port groups

RXT-3400 Product Page
