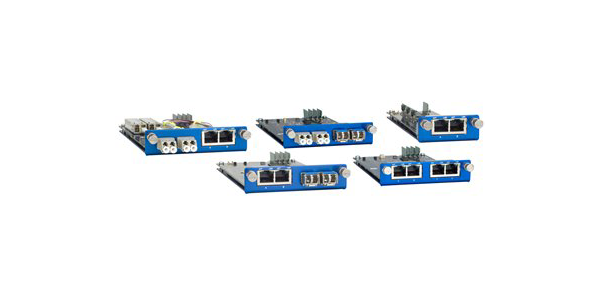

SmartNA-Breakput Filtering-Modules
SmartNA-System_Controller_Modules_Summary
SmartNA-Portable-Chassis_Summary2
SmartNA-High-Density-2U-ChassisSummary2
SmartNA-Agg_Regen_Filtering-1U-modular-Chassis
V-Line™ Bypass TAPs

Modular TAP Systems

Modular TAP Systems

Network Critical delivers 100% failsafe TAP solutions for your network monitoring. Features and capabilities include aggregation, filtering, load balancing, packet-slicing and inline traffic by-pass. Our solutions make monitoring, managing and protecting your network easier and more cost effective, creating greater tool efficiency and ROI.



Modular, scalable and customizable 1G packet broker and TAP solution for network monitoring and security tools.

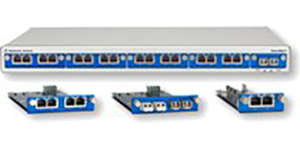

The Smart Network Access (SmartNA™) System is the most flexible and customizable TAP solution available on the market today. It is designed to work as a portable solution as well as an enterprise solution custom fit for any data centre, no matter the size.

Chassis Options:
All SmartNA™ Chassis are built to hold any SmartNA™ TAP module. This flexibility allows you to customize your TAP solution to your exact specifications, while still leaving room for expansion.

TAP Module Options:
All TAP modules are hot-swappable, fully configurable and available with Copper, Single mode Fiber, Multi-mode Fiber or SFP cage ports.



V-Line™ Bypass TAPs

Configurable as V-Line™ TAPs, Breakout TAPs, and Aggregating TAPs, and can switch between all three TAP modes without losing network link…



SmartNA™ Chassis:
1. Portable Chassis-For on the fly monitoring- holds one TAP module
2. 1U Aggregating and Filtering Chassis-Enterprise design holds 4 TAP modules, Aggregating back-plane allows aggregation across all modules, traffic filtering, full SNMP and web GUI for configuration available
3. 2U High Density Chassis-Built for high density holds up to 12 TAP modules in 2U of rack space, save money, power & rack space by powering the entire unit with only 2 power supplies

SmartNA™ Modules:

1. Virtually Inline (V-Line™) Bypass TAP Modules– Configurable as V-Line™ TAPs, Breakout TAPs, and Aggregating TAPs, and can switch between all three TAP modes without losing network link. Aggregation Mode supports Packet Slicing on the monitoring ports and Packet Injection.
2. Control Modules– Allow users to manage the modules inside of a chassis. By using simple commands over SSH or from the secure web based GUI, the Smart Network Access System is easily configurable to achieve duplication, aggregation, filtering or to perform other administrative functions



drag-n-vu logo
Click here

To view an interactive demo of NetworkCritical revolutionary interface and see how much time you can save»

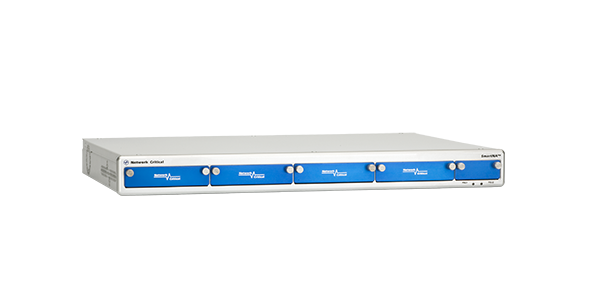

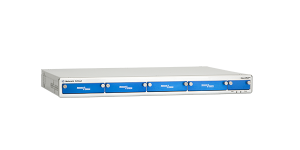

SmartNA™ Aggregating, Regenerating, & Filtering 1U Modular Chassis

SmartNA-Agg_Regen_Filtering-1U-modular-Chassis



The aggregating backplane on the 1U chassis allows you to aggregate data from up to four modular TAPs for output to one monitoring port. The interchangeable, fully configurable modular TAPs allow total flexibility and complete access to your datacenter.

Product Details

With its many features, the SmartNA 1U chassis is the most flexible chassis available on the TAP market today. Housing up to four SmartNA modular TAPs and a single SmartNA management/expansion module, this 1U device allows you to add a permanent TAP solution into your data centre while still allowing for total flexibility.

With its aggregating and regenerating backplane, the SmartNA 1U chassis allows you to TAP up to eight network links and aggregate all of the data to a single monitoring port or TAP a single link and regenerate the traffic to up to 14 monitoring ports. Because each modular TAP in the SmartNA system is fully configurable, there are endless possibilities for configuring the system to meet the specific needs of your data centre.

There are unlimited configurations for segmenting the aggregating/regenerating backplane of the SmartNA 1U chassis. This feature allows you to aggregate traffic from some or all of the modular TAPs and sends it back out of some or all of the monitoring ports. Because the modules are fully configurable to become TAP ports, SPAN ports or monitoring ports, the possibilities are endless.
&nbsp:

Product Variants

SNAC1-AC: SmartNA™ 1U Chassis Dual AC PSU four 90mm TAP Module Slots & One 50mm Expansion Module Slot

SNAC1-DC: SmartNA™ 1U Chassis Dual -48v DC PSU four 90mm TAP Module Slots & one 50mm Expansion Module Slot

Features and Benefits

Feature Benefit
Aggregating backplane Aggregate traffic from any modules across high-speed switch fabric with true non-blocking performance
Backplane filtering Filter traffic as it passes across the chassis backplane. (Requires compatible modules)
Modular design 4x hot-swappable modules can be added or removed without affecting the rest. Custom configurations can build a solution for any network
Configurable settings RS-232 for local access to system backplane and module control. Telnet & Web UI via optional expansion module
Dual PSUs Dual redundant power supplies (AC or DC) for added resilience

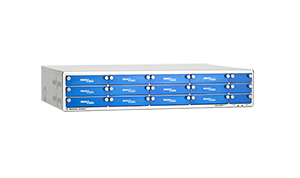

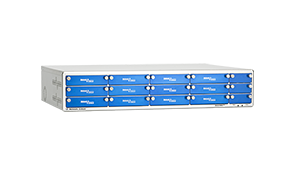

SmartNA™ High Density 2U Chassis



SmartNA-High-Density-2U-ChassisSummary2





The SmartNA™ High Density 2U Chassis supports the highest density of modular TAPs on the market, while still providing the flexibility needed for today’s ever-changing data center.







Product Details

The SmartNA high-density 2U chassis provides the high density of TAPs and the configurable flexibility you need in an enterprise access solution. With the capability to power up to 16 SmartNA modules using just a single power supply, the SmartNA high-density 2U chassis can save you money and rack space while helping to make your data centre greener.



Product Variants

SNAC2-AC: SmartNA™ 2U Chassis Dual AC PSU twelve 90mm TAP Module Slots & three 50mm Expansion Module Slot

SNAC2-DC: SmartNA™ 2U Chassis Dual DC PSU twelve 90mm TAP Module Slots & three 50mm Expansion Module Slot



Features and Benefits

Feature Benefit
High density Highest port density of any modular TAP system on the market
Configurable settings RS-232 for local access to system backplane and module control. Telnet & Web UI via optional expansion module
Dual PSUs Dual redundant power supplies (AC or DC) for added resilience
Modular design Compatible with all modules in the range. Take any module on the road for portable troubleshooting

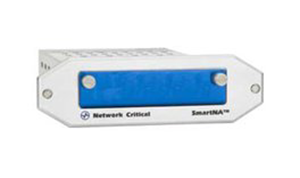

SmartNA™ Portable Chassis



SmartNA-Portable-Chassis_Summary2





Perfect for on-the-fly troubleshooting, the SmartNA™ Portable Chassis holds any one of the SmartNA™ modules.







Product Details

The SmartNA portable chassis provides all the portability and flexibility you need in a portable TAP. This small chassis was built to hold one hot-swappable SmartNA TAP module, allowing you to use the TAP for on-the-fly troubleshooting or to install it into your data-centre rack. With its built-in management port, you can TAP your network anywhere!

Product Variants

SNAC0-AC: SmartNA™ Standalone/Portable Chassis, 1 RJ-45 Management Port, Dual AC External PSU

SNAC0-DC: SmartNA™ Standalone/Portable Chassis, 1 RJ-45 Management Port, Dual DC -48v External PSU

Features and Benefits

Feature Benefit
Modular design Compatible with all modules in the range. Take any module on the road for portable troubleshooting
Configurable settings Built-in Telnet access for remote control of chassis and module
Dual PSUs Dual redundant power supplies (AC or DC) for added resilience

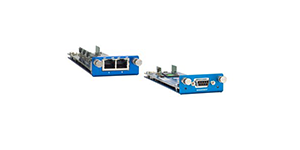

SmartNA™ System Controller Modules



SmartNA-System_Controller_Modules_Summary



For use with the SmartNA™ 1U or 2U Chassis, the SmartNA™ System Controller Modules provide remote management via CLI, Web-based Interface and SNMP, and additional monitoring ports.





Product Details

The SmartNA system controller module allows you to access your complete Smart Network Access System for remote configuration. It also provides a more secure way to configure the system, using a password-protected connection. The controller module allows you to configure the system over Telnet, Web UI and SNMP.

The SmartNA system controller module can also provide an additional monitoring port for your Smart Network Access System. It can be configured to monitor a breakout TAP, an aggregating TAP or a regenerating TAP.

Product Variants

SNAE-RJ6v2: SmartNA™ Secure Copper Control Management Module

SNAE-RS: SmartNA™ Serial Control/Expansion Module Serial Connector

Features and Benefits

Feature Benefit
Remote configuration Allows remote control of the complete system via Telnet, Web UI and RS-232
Remote monitoring Allows system administration and management with SNMP
Traffic aggregation Aggregates network traffic from any installed SmartNA modules into a single output stream
Copper/Serial Choose 10/100/1000 copper or serial slots for maximum compatibility with the existing infrastructure
Configurable settings Configure for your specific needs today. Reconfigure as your network changes

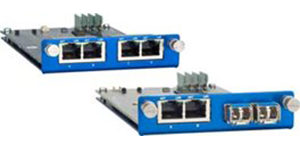

SmartNA™ V-Line™ Bypass TAP Modules



SmartNA_Vline-Bypass-TAP-Modules



Configurable as V-Line TAPs, breakout TAPs and aggregating TAPs, and can switch between all three TAP modes without losing network link. Aggregation mode supports packet slicing on the monitoring ports and packet injection.





Product Details

This modular TAP solution device provides complete fail-safe protection for an inline appliance in one simple step. Installed in place of the appliance, the TAP continually checks the appliance’s network status and while it is online directs network traffic through it. If the appliance goes offline, the TAP automatically bypasses it and traffic is directed straight through to the network devices. When the appliance comes online again traffic is once again directed through it.

This feature is vital for customers who want to deploy inline appliances on mission-critical network segments but simply can’t afford the risk of unscheduled downtime or the costly dilemma of scheduled downtime for configuration changes, maintenance or repair scenarios.

Our modular V-Line TAPs are part of a flexible system that allows you to TAP any type of network infrastructure. The chassis and module platform provides interchangeable modules to be used with our SmartNA chassis. The modules are hot-swappable, allowing easy changes to the network at any time. The chassis also provides the option of remote management, adding to the security of the unit.

Product Variants

SNAM‐RJRJV: V-Line™ TAP Module – 10/100/1000 TAP & 2 RJ‐45 10/100/1000 Monitoring Ports, supports LFP, PI and V-Line™ Modes

SNAM‐RJSFV: V-Line™ TAP Module – 10/100/1000 TAP & 2 SFP Monitoring Ports, supports LFP, PI and V-Line™ Modes

SNAM‐MSRJV: V-Line™ TAP Module – Multi-mode Gigabit Fibre TAP (LC connectors) & 2 RJ‐45 10/100/1000 Monitoring Ports, supports LFP, PI V-Line™, Breakout, & Aggregation Modes

SNAM‐MSSFV: V-Line™ TAP Module – Multi-mode Gigabit Fibre TAP (LC connectors) & 2 SFP Monitoring Ports, supports LFP, PI V-Line™, Breakout, & Aggregation Modes

SNAM‐SSRJV: V-Line™ TAP Module – Single mode Gigabit Fibre TAP (LC connectors) & 2 RJ‐45 10/100/1000 Monitoring Ports, supports LFP, PI V-Line™, Breakout, & Aggregation Modes

SNAM‐SSSFV: V-Line™ TAP Module – Single mode Gigabit Fibre TAP (LC connectors) & 2 SFP Monitoring Ports, supports LFP, PI V-Line™, Breakout, & Aggregation Modes
