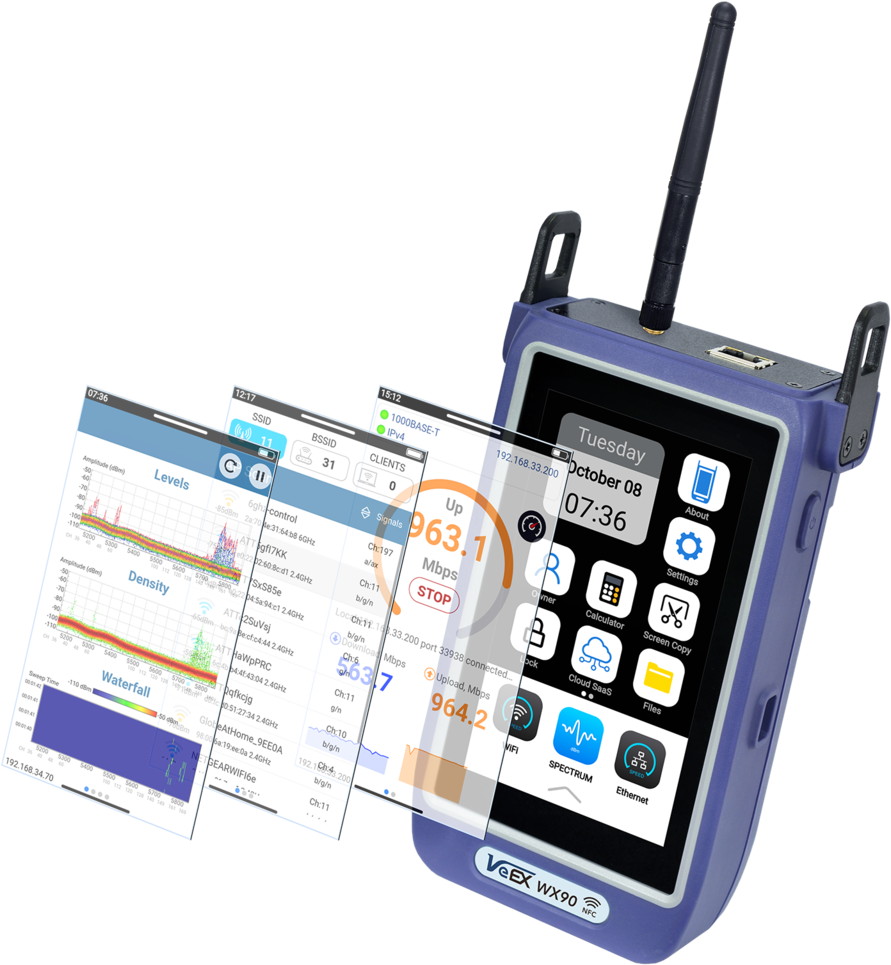

Complete Wi-Fi Testing for Field Technicians
The WX90 provides a comprehensive set of tools for Wi-Fi network installation and performance validation. Technicians can discover wireless networks, analyze access points and clients, evaluate channels and measure signal and noise levels from a single portable device.
The intuitive graphical interface and responsive capacitive touchscreen make it easy to access test functions and review results while working in residential, commercial and enterprise environments.
Advanced Wi-Fi Network Analysis
The WX90 can scan and analyze wireless networks across supported Wi-Fi bands, providing detailed information about the wireless environment.
Technicians can view:
- SSID and BSSID information
- Access points and associated clients
- Wi-Fi channels
- Security information
- Data rates
- Signal levels
- Noise levels
- Channel utilization
- Number of access points per channel
- Associated and non-associated Wi-Fi clients
This information helps identify coverage problems, channel congestion, weak signals and other wireless network performance issues.
Wi-Fi Coverage & Signal Testing
Reliable wireless coverage is essential for modern homes, offices and enterprise networks. The WX90 helps technicians verify Wi-Fi coverage by monitoring signal and noise levels throughout the test area.
Use the WX90 to identify potential coverage gaps and verify that wireless networks are delivering the expected performance in different locations.
Wi-Fi 6E & 6 GHz Testing
With support for the 6 GHz Wi-Fi band, the WX90 is designed for testing modern wireless deployments, including Wi-Fi 6E networks.
Depending on the hardware configuration, the platform supports:
802.11a/b/g/n/ac/ax
or
802.11a/b/g/n/ac/ax/be
across 2.4 GHz, 5 GHz and 6 GHz bands.
This makes the WX90 suitable for testing current and next-generation wireless networks.
Internet Speed & Network Performance Testing
The WX90 enables technicians to validate Internet and network performance using industry-recognized testing tools.
Ookla® Speedtest®
Test Internet connection performance and validate download and upload speeds using Ookla® Speedtest®.
iPerf
Use iPerf for network performance testing and traffic-based validation between compatible network endpoints.
These capabilities allow technicians to go beyond basic connectivity checks and assess whether a network is delivering the expected performance.
Internet QoE Testing Under Traffic Load
Connectivity alone does not always indicate a good user experience.
The WX90 provides Internet Quality of Experience (QoE) validation, allowing technicians to evaluate network performance under traffic load. This helps identify performance problems that may not be visible during basic Wi-Fi connectivity testing.
Use QoE testing to help verify network performance for applications and services that depend on reliable, high-speed wireless connectivity.
Built-In Gigabit Ethernet & PoE Testing
The WX90 includes a 1000BASE-T Ethernet port, providing a convenient way to test wired network performance and validate Gigabit Ethernet connections.
The Ethernet interface can also detect Power over Ethernet (PoE), helping technicians verify PoE availability when installing and troubleshooting network equipment such as wireless access points.
Optional Spectrum Analyzer
For more advanced troubleshooting, the WX90 can be equipped with an optional spectrum analyzer.
The spectrum analyzer helps technicians identify potential sources of Wi-Fi and non-Wi-Fi interference across:
- 2.4 GHz
- 5 GHz
- 6 GHz
This provides additional visibility when diagnosing wireless performance problems caused by interference or excessive RF activity.
Customizable Wi-Fi Test Profiles
Every installation is different. The WX90 allows technicians to create customizable test profiles based on specific services, test locations and network requirements.
Test profiles can help standardize installation and verification procedures across technical teams, ensuring consistent testing and reporting from one site to another.
Professional Reporting & Test Result Management
The WX90 makes it easy to save and share test results.
Test results can be:
- Saved directly on the device
- Generated as HTML reports
- Exported to PDF
- Transferred using built-in Wi-Fi connectivity
- Shared through the cloud-based NoApp® service
- Accessed remotely through the built-in web access server
The large internal storage provides space for saving multiple test results, making the WX90 practical for technicians working across multiple sites.
NoApp® Cloud-Based Test Result Sharing
The WX90 features a built-in NFC transceiver compatible with the NoApp® cloud service, enabling fast test-result transfer and sharing using a mobile phone or tablet.
The cloud-based service is included with the platform and is designed to simplify result sharing without requiring software installation or manual updates.
Designed for Professional Field Use
The WX90 is built specifically for technicians who work in demanding field environments.
Its rugged handheld design, large high-resolution color display and responsive capacitive touchscreen provide an efficient user experience while performing network tests on-site.
Additional features include:
- Fast boot-up
- Intuitive graphical user interface
- Gesture-enabled capacitive touchscreen
- Large internal data storage
- Built-in Wi-Fi connectivity
- Built-in NFC transceiver
- USB-C Power Delivery interface
- Rechargeable Li-Ion battery
- Low-voltage battery alarm
- Automatic power-off function
- Up to a full day of typical operation and testing
The USB-C PD interface can be used for charging, connecting USB memory devices and attaching compatible LAN adapters.
Why Choose the WX90?
The WX90 brings multiple network testing capabilities together in a single professional handheld device. Instead of carrying separate tools for Wi-Fi analysis, Internet speed testing, Ethernet testing and interference troubleshooting, technicians can perform a broad range of tests from one platform.
With support for modern Wi-Fi networks, Gigabit Ethernet, PoE detection, Internet QoE testing and optional spectrum analysis, the WX90 is a versatile solution for Wi-Fi professionals, network engineers, installers and field service technicians.
