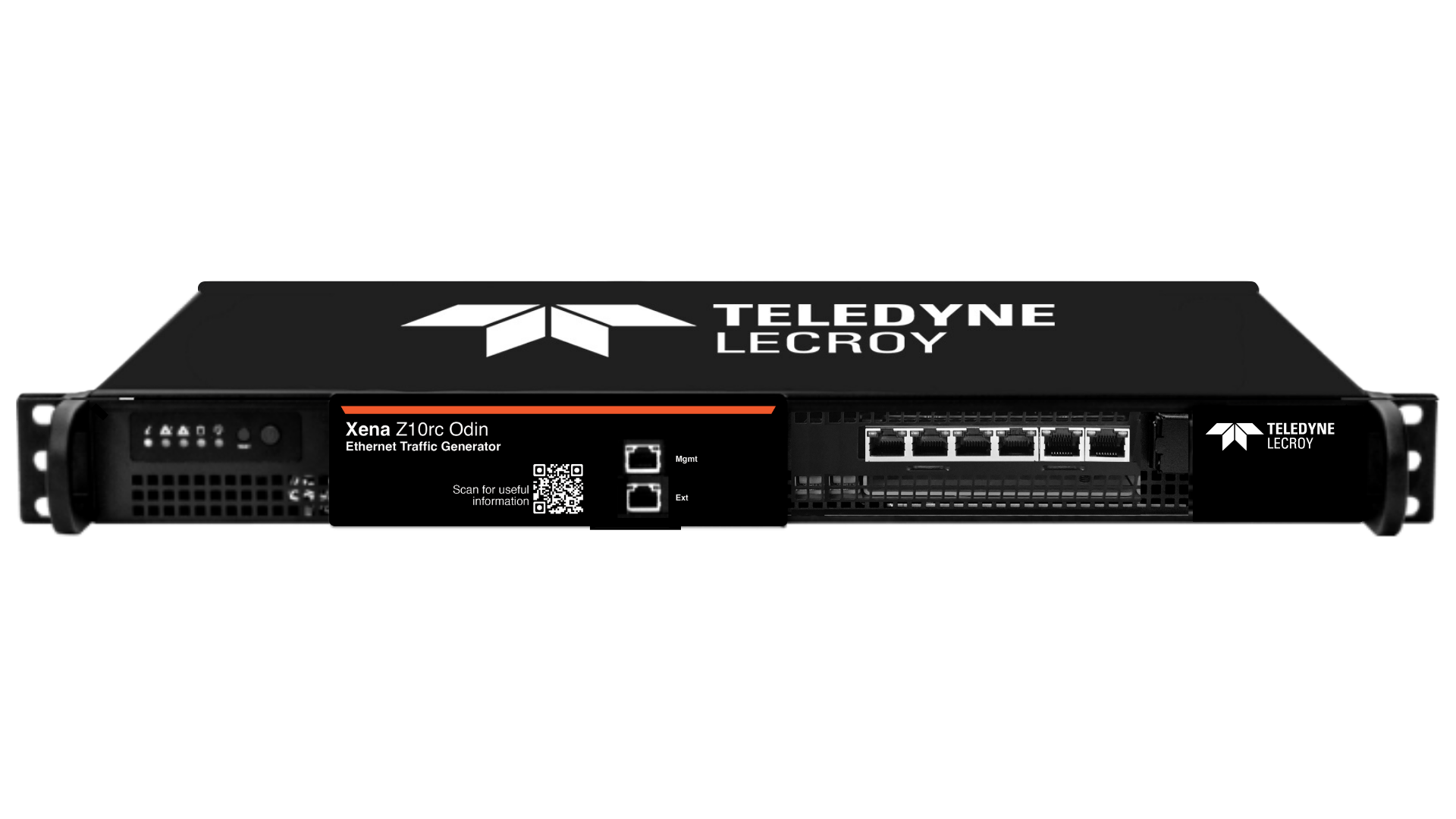

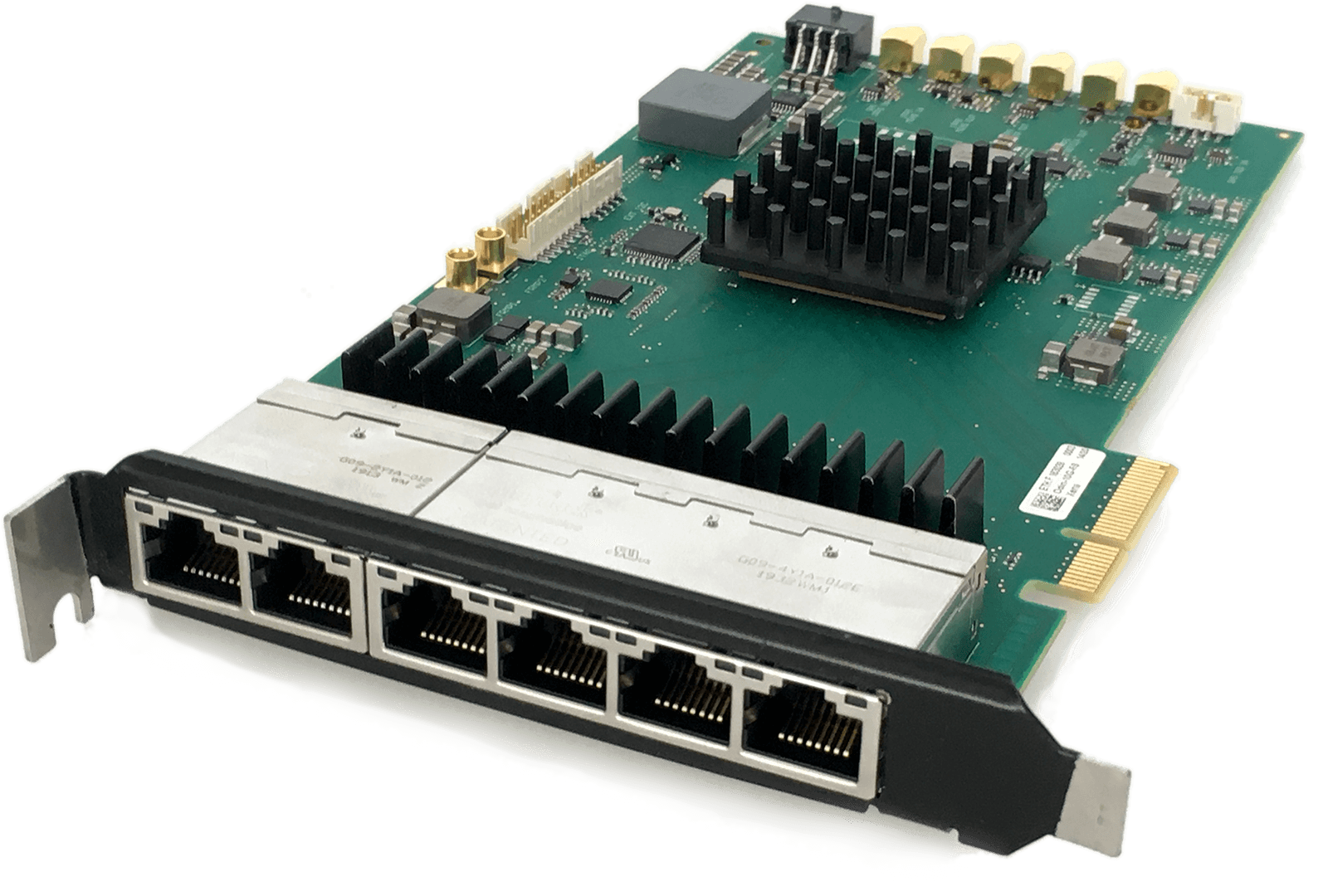

Z10r Odin

PORT LEVEL FEATURES

1. Interface category

   100 /1000 /2500 / 5000 / 10000M Ethernet

2. Number of test ports

   6 x 100 / 1000 / 2500 / 5000 / 10000M

3. Interface options

   10GBASE-T (IEEE 802.3an)/ 5GBASE-T (IEEE 802.3bz)/ 2.5GBASE-T (IEEE 802.3bz)/ 1000BASE-T (IEEE 802.3ab) / 100BASE-T (IEEE 802.3u)

4. Interface characteristics

   10GBASE-T operating at 300ft (100m) over CAT6a and CAT7 UTP cable. 5GBASE-T operating on standard Category 6 UTP cable. 2.5GBASE-T, 1000BASE-T and 100BASE-T operating on standard Category 5e UTP cable.

5. Port statistics(1)

   Link state, FCS errors, pause frames, ARP/PING, error injections, training packet All traffic: RX and TX Mbit/s, packets/s, packets, bytes
   Traffic w/o test payload: RX and TX Mbit/s, packets/s, packets, bytes

6. Adjustable Inter Frame Gap (IFG)

   Configurable from 16 to 56 bytes, default is 20B (12B IFG + 8B preamble)

7. Transmit line rate adjustment

   Ability to adjust the effective line rate by forcing idle gaps equivalent to -1000 ppm (increments of 10 ppm)

8. Transmit line clock adjustment

   From -50 to 50 ppm in steps of 0.001 ppm (shared across all ports)

9. ARP/PING

   Supported (configurable IP and MAC address per port)

10. Field upgradeable

    System is fully field upgradeable to product releases (FPGA images and Software)

11. Histogram statistics(1)

    Two real-time histograms per port. Each histogram can measure one of RX/TX packet length, IFG, or latency distribution for all traffic, a specific stream, or a filter

12. Tx disable

    Enable/disable of copper link

13. IGMPv2 multicast join/leave

    IGMPv2 continuous multicast join, with configurable repeat interval

14. Oscillator characteristics

    Z10r Odin:

    • Initial Accuracy is 3 ppm
    • Frequency drift over 1st year: ± 3 ppm (over 15 years: ± 15 ppm)
    • Temperature Stability: ± 20 ppm (Total Stability is ± 35 ppm)

TRANSMIT ENGINE

1. Number of transmit streams per port

   256 (wire-speed) Each stream can generate millions of traffic flows through the use of field modifiers

2. Test payload insertion per stream

   Wire-speed packet generation with timestamps, sequence numbers, and data integrity signature optionally inserted into each packet.

3. Stream statistics(1)

   TX Mbit/s, packets/s, packets, bytes, FCS error

4. Bandwidth profiles

   Burst size and density can be specified. Uniform and bursty bandwidth profile streams can be interleaved

5. Field modifiers

   16-bit header field modifiers with inc, dec, or random mode. Each modifier has configurable bit-mask, repetition, min, max, and step parameters. 4 modifiers per stream.

6. Packet length controls

   Fixed, random, butterfly, and incrementing packet length distributions. Packet length from 56 to 12288 bytes

7. Packet payloads

   Repeated user specified 1 to 18B pattern, an 8-bit incrementing pattern

8. Error generation

   Undersize length (56B min) and oversize length (12288 max.) packet lengths, injection of sequence, misorder, payload integrity, and FCS errors

9. TX packet header support and RX autodecodes

   Ethernet, Ethernet II, VLAN, ARP, IPv4, IPv6, UDP, TCP, LLC, SNAP, GTP, ICMP, RTP, RTCP, STP, MPLS, PBB, or fully specified by user

10. Pause Frames

    Responds to incoming pause frames

11. Pause Frames

    Responds to incoming pause frames

12. Packet scheduling modes

    • Normal (stream interleaved mode). Standard scheduling mode, precise rates, minor variation in packet inter-frame gap
    • Strict Uniform. New scheduling mode, with 100% uniform packet inter-frame gap, minor deviation from configured rates.
    • Sequential packet scheduling (sequential stream scheduling). Streams are scheduled continuously in sequential order, with configurable number of packets per stream.
    • Burst. Packets per stream are organized in bursts. Bursts from active streams form a burst group. The user specifies time from start of one burst group till start of next burst group.

RECEIVE ENGINE

1. Number of traceable Rx streams per port

   2016 (wire-speed)

2. Automatic detection of test payload for received packets

   Real-time reporting of statistics and latency, loss, payload integrity, sequence error, and misorder error checking

3. Jitter measurement

   Jitter (Packet Delay Variation) can be measured on up to 32 streams.bJitter measurements compliant to MEF10 standard with 8 ns accuracy

4. Stream statistics(1)

   • RX Mbit/s, packets/s, packets, bytes.
   • Loss, payload integrity errors, sequence errors, misorder errors
   • Min latency, max latency, average latency
   • Min jitter, max jitter, average jitter

5. Latency measurements accuracy

   ±8 ns

6. Latency measurement resolution

   8 ns (Latency measurements can calibrate and remove latency from transceiver modules)

7. Number of filters:

   6 x 64-bit user-definable match-term patterns with mask, and offset
   6 x frame length comparator terms (longer, shorter)
   6 x user-defined filters expressed from AND/OR’ing of the match and length terms

8. Filter statistics(1)

   Per filter: RX Mbit/s, packets/s, packets, bytes.

CAPTURE

1. Capture criteria

   All traffic, stream, FCS errors, filter match, or traffic without test payloads

2. Capture start/stop triggers

   Capture start and stop trigger: none, FCS error, filter match, payload error

3. Capture limit per packet

   16 – 12288 bytes

4. Wire-speed capture buffer per port

   64 kB

5. Low speed capture buffer per port (10Mbit/sec)

   4096 packets (any size)

ENERGY EFFICIENT ETHERNET (EEE)

1. Energy Efficient Ethernet

   • Enable/Disable EEE for 10G, 5G, 2,5G, 1G and 100M speeds
   • Enable/Disable low-power mode in the TX direction (independently of the RX direction)
   • Monitor active/low-power mode transition activity in both TX and RX direction
2. (1) Counter size: 64 bits
