Z10sx Odin

PORT LEVEL FEATURES

1. Interface category

   10G Ethernet

2. Number of test ports

   6 ports that can be individually configured by different users to test 6 different speeds simultaneously.

3. Interface options

   • 10M/100M/1000/2500/5000/10G Copper*
   • 10GBASE-SR / LR / ER or
   • 1000/2500/5000/10G Direct Attached Cable (DAC) or
   • 10/100/1000BASE-T**

   * Requires FS-SFP-10GM-T-30
   ** Requires SFP transceivers with sgmii host interface (Roadmap)

4. Number of transceiver module cages

   6 x SFP+

5. Port statistics

   • Link state, FCS errors, pause frames, ARP/PING, error injections, training packet
   • All traffic: RX and TX Mbit/s, packets/s, packets, bytes
   • Traffic w/o test payload: RX and TX Mbit/s, packets/s, packets, bytes

6. Adjustable Inter Frame Gap (IFG)

   Configurable from 16 to 56 bytes, default is 20B (12B IFG + 8B preamble)

7. Transmit line rate adjustment

   Ability to adjust the effective line rate by forcing idle gaps equivalent to -1000 ppm (increments of 10 ppm)

8. Transmit line clock adjustment

   From -400 to 400 ppm in steps of 1 ppm (shared across all ports)

9. ARP/PING

   Supported (configurable IP and MAC address per port)

10. Field upgradeable

    System is fully field upgradeable to product releases (FPGA images and software)

11. Histogram statistics

    Two real-time histograms per port. Each histogram can measure one of RX/TX packet length, IFG, or latency distribution for all traffic, a specific stream, or a filter

12. Tx disable

    Enable/disable of optical laser or copper link

13. IGMPv2 multicast join/leave

    IGMPv2 continuous multicast join, with configurable repeat interval

14. Loopback modes

    • Off: Traffic flows naturally out of the port
    • L1 RX-to-TX: Any received packet is bounced back through TX
    • L2 RX-to-TX: Same as L1 RX-to-TX yet it also swaps MAC SRC<>DST
    • L3 RX-to-TX: Same as L2 RX-to-TX yet it also swaps IP SRC<>DST
    • TX(on)-to-RX: Packet goes out of TX but also internally direct to RX
    • TX(off)-to-RX: Packet goes directly to RX. Port’s transmitter is idle (No link sync needed)
    • Port-to-port: Any RX packet goes out through TX on the neighbor port (L1)

15. Oscillator characteristics

    • Initial Accuracy is 3 ppm
    • Frequency drift over 1st year: +/- 3 ppm (over 15 years: +/- 15 ppm)
    • Temperature Stability: +/- 20 ppm (Total Stability is +/- 35 ppm)

TRANSMIT ENGINES

1. Number of transmit streams per port

   256 (wire-speed) Each stream can generate millions of traffic flows through the use of field modifiers

2. Test payload insertion per stream

   Wire-speed packet generation with timestamps, sequence numbers, and data integrity signature optionally inserted into each packet.

3. Stream statistics

   TX Mbit/s, packets/s, packets, bytes, FCS error

4. Bandwidth profiles

   Burst size and density can be specified. Uniform and bursty bandwidth profile streams can be interleaved

5. Field modifiers

   24-bit header field modifiers with inc, dec, or random mode. Each modifier has configurable bitmask, min, max, and step parameters. Up to 5 24-bit modifiers can be applied per stream

6. Packet length controls

   Fixed, random, butterfly, and incrementing packet length distributions. Packet length from 60B to 16384 bytes

7. Packet payloads

   Repeated user specified 1 to 18B pattern, 8-bit incrementing or decrementing pattern, 16-bit incrementing or decrementing pattern, PRBS-31, Random

8. Extended payload

   Fixed full custom payloads can be generated for each stream with payload sizes up to 16384 bytes

9. Error generation

   Undersize length (56B min) and oversize length (16384 max.) packet lengths, injection of sequence, misorder, payload integrity, and FCS errors

10. TX packet header support and RX autodecodes

    Ethernet, Ethernet II, VLAN, ARP, IPv4, IPv6, UDP, TCP, LLC, SNAP, GTP, ICMP, RTP, RTCP, STP, MPLS, PBB, or fully specified by user

11. Pause Frames

    Responds to incoming pause and PFC (Priority-based Flow Control) frames

12. Packet scheduling modes

    • Normal (stream interleaved mode) – standard scheduling mode, precise rates, minor variation in packet inter-frame gap.
    • Strict Uniform – new scheduling mode, with 100% uniform packet inter-frame gap, minor deviation from configured rates.
    • Sequential packet scheduling (sequential stream  scheduling) – Streams are scheduled continuously in sequential order, with configurable number of packets per stream.
    • Burst – Packets in a stream are organized in bursts. Bursts from active streams form a burst group. The user specifies time from start of one burst group till start of next burst group.

RECEIVE ENGINE

1. No. of traceable Rx streams per port

   2016 (wire-speed)

2. Automatic detection of test payload for received packets

   Real-time reporting of statistics and latency, loss, payload integrity, sequence error, and misorder error checking

3. Jitter measurement

   Jitter (Packet Delay Variation) measurements compliant to MEF10 standard with 8 ns accuracy. Jitter can be measured on up to 32 streams.

4. Stream statistics

   • RX Mbit/s, packets/s, packets, bytes.
   • Loss, payload integrity errors, sequence errors, misorder errors
   • Min. latency, max latency, average latency
   • Min. jitter, max jitter, average jitter

5. Latency measurements accuracy

   ±8 ns

6. Latency measurement resolution

   8 ns (Latency measurements can calibrate and remove latency from transceiver modules)

7. Number of filters:

   • 6 x 64-bit user-definable match-term patterns with mask, and offset
   • 6 x frame length comparator terms (longer, shorter)
   • 6 x user-defined filters expressed from AND/OR’ing of the match and length terms

8. Filter statistics

   Per filter: RX Mbit/s, packets/s, packets, bytes.

CAPTURE

1. Capture criteria

   All traffic, stream, FCS errors, filter match, or traffic without test payloads

2. Capture start/stop triggers

   Capture start and stop trigger: none, FCS error, filter match

3. Capture limit per packet

   16 – 16384 bytes

4. Wire-speed capture buffer per port

   64 kB

5. Low speed capture buffer per port (10Mbit/sec)

   4096 packets (any size)

HW SPECIFICATIONS

1. Max. Power

   10 W

2. Weight

   0.34 lbs (0.155 kg)

3. Environmental

   • Operating Temperature: 10 to 35º C
   • Storage Temperature: -40 to 70º C
   • Humidity: 8% to 90% non-condensing

4. Regulatory

   FCC (US), CE (Europe)

5. Product Numbers (P/N)

   • Z10sx Odin – test module for XenaBay chassis

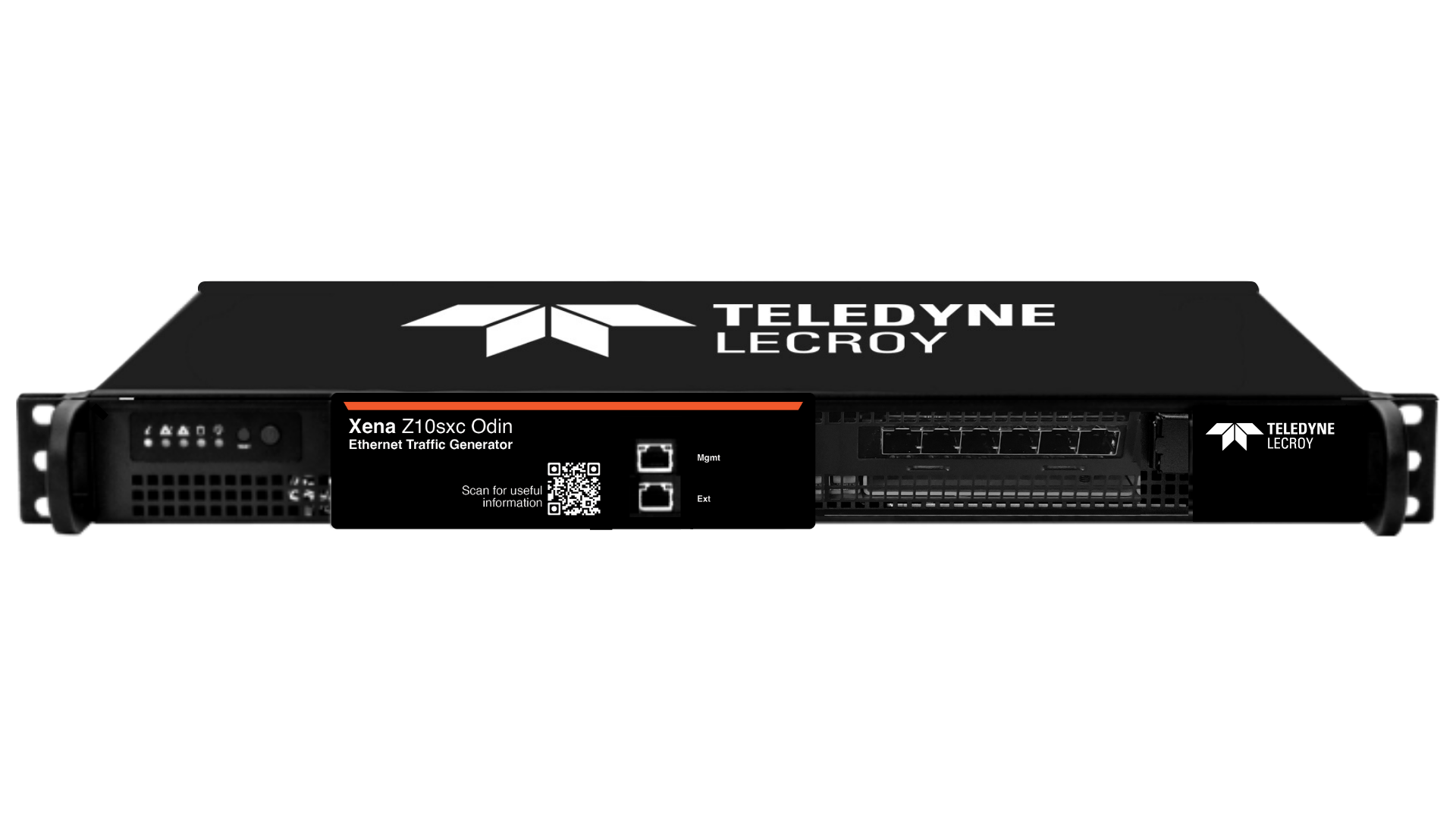

   • Z10sxc Odin – mounted in XenaCompact chassis
