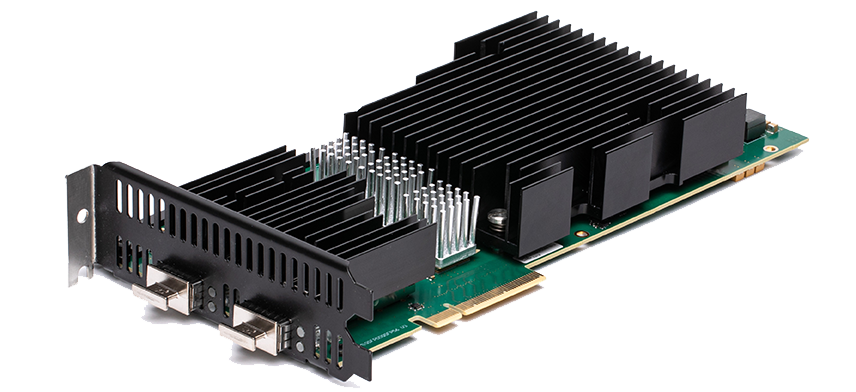

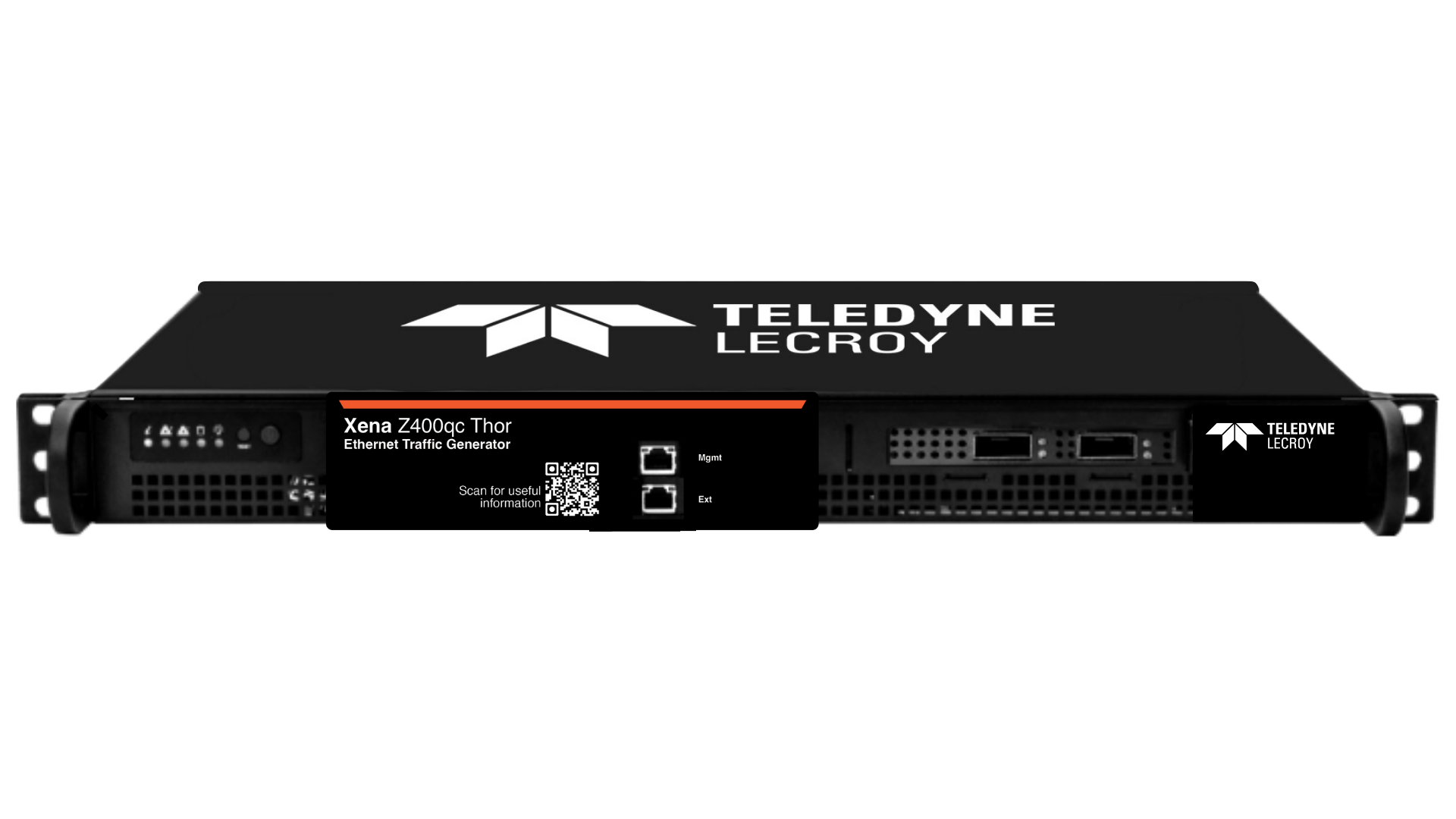

Z400q Thor

PORT LEVEL FEATURES

1. Interface category

   QSFP-DD: 400G, 200G, 100G, 50G Ethernet
   QSFP56: 200G, 100G, 50G Ethernet
   QSFP28: 100G, 50G, 40G*, 25GE and 10G* Ethernet
   QSFP+: 40G, 10G Ethernet

   * Depending on transceiver capabilities

2. Number of test ports

   1 x 400G
   2 x 200GE
   4 x 100GE
   8 x 50GE
   2 x 40GE
   8 x 25GE
   8 x 10GE

3. Interface options

   QSFP-DD cage:

   1 x 400GBASE-DR4/LR4/FR4 @PAM4, or
   1 x 400GBASE-SR8/FR8/LR8/RC8 @PAM4, or
   2 x 200GBASE-CWDM4 (dual CS connector) @PAM4, or
   1 x 200GBASE-DR4/SR4/FR4/LR4/CR4 @PAM4, or
   4 x 100GBASE-CR2, or 4 x 100GBASE-DR @PAM4, or
   2 x 100GBASE-SR2/CR2, 2 x 100GBASE-DR @PAM4,
   (dual CS connector) or
   1 x 100GBASE-SR4/LR4/CR4/CWDM4 @NRZ, or
   8 x 50GBASE-SR/CR @PAM4, or
   4 x 50GBASE-SR/CR @PAM4, or
   4 x 50GBASE-SR2/LR2/CR2 @NRZ, or
   2 x 40GBASE-SR4/LR4/CR4 @NRZ, or
   8 x 25GBASE-SR/LR/CR @NRZ, or
   8 x 10GBASE-SR/LR/CR @NRZ

   QSFP56 cage:

   Same as QSFP-DD minus support for 400G speeds, 2 x 200GBASE-CWDM4, 4 x 100GBASE-DR and 8 x 50GBASE-SR/C.

   Actual interface options depend on the capabilities of the inserted transceiver. Both cages can be active simultaneously except when the QSFP-DD cage runs 400GE, 2 x 200GBASE-CWDM4, 1 x 200GBASE-SR8, or 8 x 50GBASE-SR/CR. Both cages must run with the same base interface configuration (e.g. 2 x 50G).

   ** As defined by 25/50 Gigabit Ethernet Consortium

4. Auto Negotiation and Link Training

   IEEE 802.3 Clause 73, Auto-negotiation

5. Forward Error Correction (FEC)

   RS-FEC (Reed Solomon) (544,514,t=15), IEEE 802.3 Clause 119 (200/400GE)
   RS-FEC (Reed Solomon) (528,514,t=7), IEEE 802.3 Clause 91 (100GE)
   RS-FEC (Reed Solomon) (544,514,t=15), IEEE 802.3 Clause 108 (25GE)
   RS-FEC (Reed Solomon) (528,514,t=15), 25/50G Ethernet Consortium (25/50GE)
   RS-FEC (Reed Solomon) (528,514,t=7), IEEE 802.3 Clause 134 (100GE/50GE 802.3cd)
   BASE-R FEC (Firecode) 2112,2080 IEEE 802.3 Clause 74 (25GE, 10GE)

6. Number of transceiver module cages

   1xQSFP-DD/QSFP56/QSFP28/QSFP+ and 1xQSFP56/QSFP28/QSFP+

7. Port statistics ⁽²⁾

   Link state, FCS errors, pause frames, ARP/PING, error injections, training packet
   All traffic: RX and TX Mbit/s, packets/s, packets, bytes
   Traffic w/o test payload: RX and TX Mbit/s, packets/s, packets, bytes

8. Adjustable Inter Frame Gap (IFG)

   Configurable from 16 to 56 bytes, default is 20B (12B IFG + 8B preamble)

9. Transmit line rate adjustment

   Ability to adjust the effective line rate by forcing idle gaps equivalent to -1000 ppm (increments of 10 ppm)

10. Transmit line clock adjustment

    From -100 to 100 ppm in steps of 0.001 ppm (shared across all ports)

11. ARP/PING

    Supported (configurable IP and MAC address per port)

12. Field upgradeable

    System is fully field upgradeable to product releases (FPGA images and Software)

13. Histogram statistics ⁽²⁾

    Two real-time histograms per port. Each histogram can measure one of RX/TX packet length, IFG, jitter, or latency distribution for all traffic, a specific stream, or a filter.

14. Tx disable

    Enable/disable of optical laser or copper link

15. IGMPv2 multicast join/leave

    IGMPv2 continuous multicast join, with configurable repeat interval

16. Loopback modes

    • L1RX2TX – RX-to-TX, transmit byte-by-byte copy of the incoming packet
    • L2RX2TX – RX-to-TX, swap source and destination MAC addresses (*only at 10G)
    • L3RX2TX – RX-to-TX, swap source and destination MAC addresses and IP addresses (*only at 10GE)
    • TXON2RX – TX-to-RX, packet is also transmitted from the port
    • TXOFF2RX – TX-to-RX, port’s transmitter is idle
    • Port-to-port – Inline loop mode where all traffic is looped 100% transparent at L1 (All rates except 400GE)

17. Oscillator characteristics

    • Initial Accuracy is 3 ppm
    • Frequency drift over 1st year: +/- 3 ppm (over 15 years: +/- 15 ppm)
    • Temperature Stability: +/- 20 ppm (Total Stability is +/- 35 ppm)

400/200/100/50/40/25/10GE FRAMED PRBS AND PCS/PMA LAYERS

1. Payload Test pattern

   PRBS-7, PRBS-9, PRBS-10, PRBS-11, PRBS-13, PRBS-15, PRBS-20, PRBS-23, PRBS-31, PRBS-49, PRBS-58

2. Error Injection

   Manual single shot bit-errors

3. Alarms

   Pattern loss

4. Error analysis

   Bit-errors: count, rate

5. PCS virtual lane configuration

   User-defined skew insertion per Tx virtual lane, and user defined virtual lane to SerDes mapping for testing of the Rx PCS virtual lane re-order function

6. PCS virtual lane statistics

   Relative virtual lane skew measurement (up to 2048 bits)
   PAM4: Corrected Bit error, PreFEC BER
   NRZ, No FEC: sync header and PCS lane marker error counters, indicators for loss of sync header and lane marker, BIP8 errors

7. FEC Total Statistics

   FEC Total Statistics PAM4: Total corrected FEC symbols, Total uncorrected FEC symbols, Estimated Pre-FEC BER, Estimated Post-FEC BER, Pre-FEC Error Distribution Graph

8. Link Flap

   Single short or repeatable link down events with ms precision

TRANSMIT ENGINES

1. Number of transmit streams per port

   256 (wire-speed) Each stream can generate millions of traffic flows using field modifiers

2. Test payload insertion per stream

   Wire-speed packet generation with timestamps, sequence numbers, and data integrity signature optionally inserted into each packet.

3. Stream statistics ⁽²⁾

   TX Mbit/s, packets/s, packets, bytes, FCS error

4. Bandwidth profiles

   Burst size and density can be specified. Uniform and bursty bandwidth profile streams can be interleaved

5. Field modifiers

   16-bit or 32-bit header field modifiers with inc, dec, or random mode. Each modifier has configurable bit-mask, repetition, min, max, and step parameters. 8 (100G/50G PAM4: 2) 16-bit modifiers per stream or 4 (100G/50G PAM4: 1) 32-bit modifiers per stream

6. Packet length controls

   Fixed, random, butterfly, and incrementing packet length distributions. Packet length from 60 to 12288 bytes

7. Packet payloads

   Repeated user specified 1 to 18B pattern, an 8-bit incrementing pattern

8. Extended payload

   Fixed full custom payloads can be generated for each stream with payload sizes up to 12288 bytes

9. Error generation

   Undersize length (56B min) and oversize length (9200 max.) packet lengths, injection of sequence, misorder, payload integrity, and FCS errors

10. TX packet header support and RX autodecodes

    Ethernet, Ethernet II, VLAN, ARP, IPv4, IPv6, UDP, TCP, LLC, SNAP, GTP, ICMP, RTP, RTCP, STP, MPLS, PBB, or fully specified by user

11. Pause Frames

    NRZ rates: Responds to incoming pause and PFC (Priority-based Flow Control) frames

12. Packet scheduling modes

    • Normal (stream interleaved mode). Standard scheduling mode, precise rates, minor variation in packet inter-frame gap.
    • Strict Uniform. New scheduling mode, with 100% uniform packet inter-frame gap, minor deviation from configured rates.
    • Sequential packet scheduling (sequential stream scheduling). Streams are scheduled continuously in sequential order, with configurable number of packets per stream.
    • Burst. Packets per stream are organized in bursts. Bursts from active streams form a burst group. The user specifies time from start of one burst group till start of next burst group.

RECEIVE ENGINE

1. Number of traceable Rx streams per port

   2016 (wire-speed)

2. Automatic detection of test payload for received packets

   Real-time reporting of statistics and latency, loss, payload integrity, sequence error, and misorder error checking

3. Jitter measurement

   Jitter (Packet Delay Variation) measurements compliant to MEF10 standard with 8 ns accuracy. Jitter can be measured on up to 32 streams.

4. Stream statistics ⁽²⁾

   • RX Mbit/s, packets/s, packets, bytes.
   • Loss, payload integrity errors, sequence errors, misorder errors
   • Min latency, max latency, average latency
   • Min jitter, max jitter, average jitter

5. Latency measurements accuracy

   ±32 ns (opto/elec).

6. Latency measurement resolution

   8 ns (Latency measurements can calibrate and remove latency from transceiver modules)

7. Number of filters:

   • 6 (100G/50G PAM4: 4) x 64-bit user-definable match-term patterns with mask, and offset
   • 6 (100G/50G PAM4: 4) x frame length comparator terms (longer, shorter)
   • 6 (100G/50G PAM4: 4) x user-defined filters expressed from AND/OR’ing of the match and length terms.

8. Filter statistics ⁽²⁾

   Per filter: RX Mbit/s, packets/s, packets, bytes.

CAPTURE

1. Capture criteria

   All traffic, stream, FCS errors, filter match, or traffic without test payloads

2. Capture start/stop triggers

   Capture start and stop trigger: none, FCS error, filter match

3. Capture limit per packet

   16 – 12288 bytes

4. Wire-speed capture buffer per port

   384 kB for 400GE
   192 kB for 200GE
   96 kB for 100GE
   48 kB for 50GE
   48 kB for 40GE
   32 kB for 25GE
   16 kB for 10GE

5. Low speed capture buffer per port (10Mbit/sec)

   4096 packets (any size)

ADVANCED PHY FEATURES

1. Equalization Controls

   Tx Transmit Equalization Controls
   • Pre-emphasis
   • Tx Attenuation
   • Tx Post-emphasis Signal Integrity Analysis
   Optional Auto-Tune of Rx equalizer/CTLE
