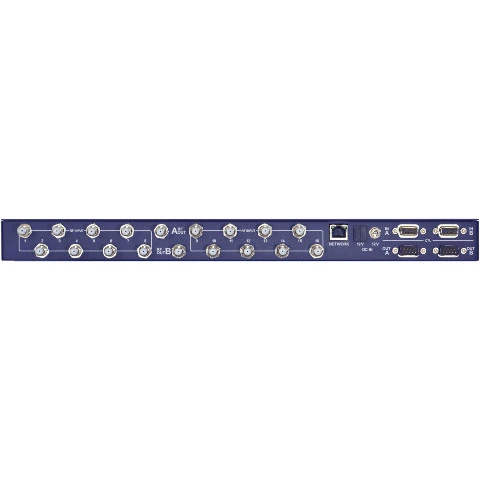

AT1700 / AT1600 RF Monitoring Switch
The AT1700M / AT1600E series RF multiplexers provide a high-performance, cost-effective broadband switching solution for RF network applications. When paired with the AT2500 series spectrum analysers, they deliver an efficient setup for headend testing and return path monitoring.
- Full 1 GHz RF matrix performance
- Available configurations: 16×1 (AT1701M/AT1601E) and 16×2 (AT1702M/AT1602E)
- Ultra-fast switching speed up to 100 microseconds
- Zero insertion gain (AT1600E) and +10 dB gain (AT1700M) options
- Front panel manual control for output A or B selection
- Supports daisy-chain configuration for scaling up to 256 inputs (16×1 models)
- Extended scalability up to 256×2 inputs (16×2 models)
- Centralised control of up to 256 switch ports via analyser systems
- Fully compatible with VeEX AT2500 spectrum analysers, CaLan® 3010H Sweep systems, and CX380X monitoring platforms
