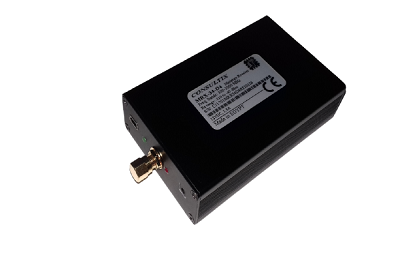

CellWizard™ CW Receivers
CellWizard CW Receivers: Portable Multi-Channel Wireless Test Receiver for Indoor Coverage Mapping and Model Calibration
CellWizard CW Receivers are ultra-portable handheld and pocket-size receivers designed for wireless field testing including site surveys, model calibration, DAS testing, and coverage mapping. The family includes multiple models supporting frequencies from 150 MHz to 3.9 GHz depending on model selection. The flagship MRX-34-D4 covers 300 MHz to 3 GHz with soft-key activation extending to 3.9 GHz and supports up to 10 simultaneous channels. The MRX-34-C4-2 is a pocket-size 3 GHz receiver featuring dual-port antenna capability for frequency-specific measurement accuracy. All models feature multi-channel scanning at 2000 samples per second and integrate with WalkView Android software for live RSSI mapping, floor plan integration, and data export compatibility with radio design tools.
- Ultra-portable handheld and pocket-size designs eliminate need for laptop or external equipment
- Frequency coverage from 150 MHz to 3.9 GHz with multiple model options
- Multi-channel scanning up to 10 simultaneous channels for parallel signal monitoring
- 2000 samples per second capture rate with 40-lambda lee criteria support for accuracy
- Battery operation lasting over 3 hours for extended field testing sessions
- WalkView Android software enables live RSSI mapping and floor plan visualisation
- Support for CBRS, LTE, UMTS, GSM, CDMA2000, WiFi, and public safety bands
- Dual-port antenna option (MRX-34-C4-2) provides frequency-specific measurement accuracy
- Portable design eliminates heavy backpack and complex scanner requirements for testing
- Multi-channel capability enables simultaneous reception and monitoring of multiple signals
- 40-lambda lee criteria support ensures measurement accuracy standards compliance
- Adjacent channel rejection of -35 dBc prevents neighbouring frequency interference
- WalkView Android app simplifies data collection with intuitive user interface
- Compatible with multiple map formats (iBwave, Ranplan, MapInfo, Asset, etc.)
- Indoor and outdoor testing modes with integrated GPS support for location tracking
- Raw and averaged data file export enables compatibility with radio design software
- Model Variants: WRX-33-B, MRX-34-C, MRX-34-D, MRX-34-D4, MRX-34-C4-2
- Frequency Range: 150 MHz to 3900 MHz (varies by model)
WRX-33-B: 300 to 3000 MHz
MRX-34-C: 300 to 3000 MHz
MRX-34-D: 150 to 3900 MHz - Scanned Channels: Up to 4 channels (WRX-33-B, MRX-34-C) / Up to 10 channels (MRX-34-D)
- Frequency Step: 100 kHz
- Modulation Type: CW only
- Sampling Rate: 2000 samples per second
- Adjacent Channel Rejection: -35 dBc
- Battery Operation: >3 hours (WRX-33-B) / >3.5 hours (MRX-34-D) / USB powered (MRX-34-C)
- Weight: <700 gm (WRX-33-B) / <220 gm (MRX-34-C, MRX-34-D)
- Supported Bands: CBRS, LTE, UMTS/HSxPA, GSM/EDGE, CDMA2000/EV-DO, WiFi/WiMAX, Public Safety/Tetra/LMR
- Software: WalkView Android application for data collection and analysis
- Map Compatibility: iBwave, Ranplan, MapInfo, Asset, and other standard formats
- Data Output: Raw and averaged data files for radio design software export
- Optional Accessories: Test antennas, low-loss cables, shoulder strap for field operations
