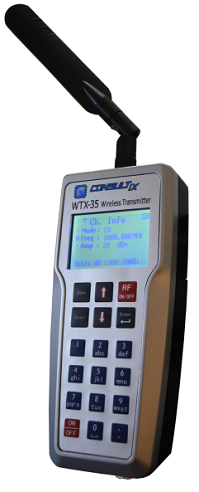

CellWizard™ CW Transmitters
CellWizard™ CW Transmitters: Portable Battery-Operated RF Signal Generator 150-4200 MHz
CellWizard CW test transmitters are field-proof portable RF signal generators in battery-operated heavy-duty form. Designed for multi-band field applications including in-building site modelling, DAS injection and testing, walk-testing, and outdoor path model tuning with broad range of optional power amplifiers. Part of Consultix family of test transmitters covering CW, WCDMA, and LTE modulations with simultaneous multi-port CW configurations. Award-winning models set industry standard for next-generation transmitters for indoor and outdoor applications. Wide-band frequency operation allows single device to cover all bands from 150 MHz to 4.2 GHz, eliminating need for multiple transmitters. Superior RF performance with +20dBm standalone output and +47 dBm with optional amplifiers. Multi-port models generate up to 4 simultaneous CW signals.
- Award-winning CellWizard transmitters setting industry standard
- Wide-band frequency operation eliminates need for multiple transmitters
- Single device covers 150 MHz to 4.2 GHz
- Superior RF performance and output level accuracy
- +20dBm standalone output power for field testing
- +47 dBm with optional external power amplifiers
- Ideal for indoor and outdoor propagation model tuning
- Suitable for DAS injection and testing applications
- Multi-port models generate up to 4 CW signals simultaneously
- Each port operates independently with full frequency range
- Battery operated for extended field deployment
- Handheld and lightweight for portability
- Turn-key setup with high-gain antennas and accessories
- Low-loss cables and non-metal tripods for accuracy
- High accuracy RF signal generation for testing
- Battery operated for portable field applications
- Handheld and lightweight design for mobility
- Ergonomic user interface for field operator ease
- Soft-key field upgradeable for future capability expansion
- Modular design saves user investments and logistics costs
- Multi-port capability for simultaneous signal generation
- Wide-band frequency coverage from 150 to 4.2 GHz
- Independent port operation on multi-port models
- Supported bands include CBRS, LTE, UMTS/HSxPA, GSM/EDGE, CDMA2000/EV-DO, WiFi/WiMAX, Public safety/Tetra/LMR
- Applications include model calibration, DAS testing, walk-testing, antenna tuning, signal strength testing
- Model WTX-05
Frequency Range: Band selection of 700, 850, 900, 1800, 1900, 2100, 2600 MHz
Ports: 1
Maximum Output Power: +20 dBm
Modulations: CW and WCDMA
Battery Operation: 105 minutes
- Model WTX-35-A
Frequency Range: 300 to 4200 MHz
Ports: 1
Maximum Output Power: +20 dBm
Modulations: CW
Battery Operation: >3 hours
- Model WTX-35-B
Frequency Range: 150 to 3700 MHz
Ports: Up to 4 simultaneously
Maximum Output Power: 15 dBm
Modulations: CW
Battery Operation: 105 minutes
- Model WTX-35-C
Frequency Range: 60 to 3000 MHz
Ports: 1
Maximum Output Power: +20 dBm
Modulations: CW
Battery Operation: No data
- General Features
Optional external power amplifiers up to +47 dBm
Supported Bands: CBRS, LTE, UMTS/HSxPA, GSM/EDGE, CDMA2000/EV-DO, WiFi/WiMAX, Public safety/Tetra/LMR
Battery Powered for field mobility
Adjustable output power levels available
Can be used for antenna testing, tuning, and propagation model calibration
