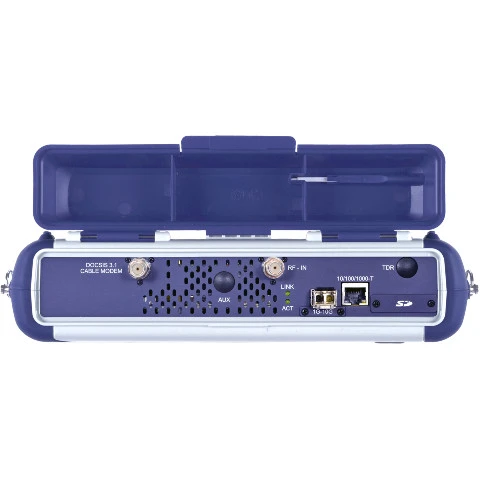

CX350s-D3.1 (Replaced by CX310)
Advanced All-in-One Installer Test Meter
The VePAL CX350s-D3.1 is a portable all-in-one test solution designed for legacy analogue and digital cable TV networks. It supports key testing functions including SLM, DOCSIS 3.0/3.1, Ethernet, and T1 measurements, making it suitable for comprehensive field installation and maintenance work.
- Rugged and lightweight design built for demanding field conditions
- 7-inch high-resolution colour touchscreen with intuitive graphical interface
- Ethernet LAN management port for remote access, back-office integration, and workforce management
- Fast data transfer via USB memory, FTP over LAN, or DOCSIS interfaces
- ReVeal™ PC software for configuration management, firmware updates, result processing, and report generation
- Interchangeable Li-ion battery packs for extended field operation
- Interface lock feature to prevent unintended changes during long-term testing
- Optional Wi-Fi Wiz with SSID analysis (InSSIDer)
- Optional Wi-Fi spectrum analyser
- Optional VoIP and IPTV testing tools
- Optional digital fibre inspection scope
- Optional optical power meter
- Frequency range from 5 MHz to 1 GHz
- Full SLM measurements, including single channel, system scan, tilt, and installation checks
- Video and audio power level measurements for Annex A, B, and C signals
- Forward and return path QAM analysis with MER, BER, constellation, histogram, and equaliser functions
- Advanced digital measurements, including HUM, EVM, phase jitter, symbol rate error, frequency response, and group delay
- DOCSIS 3.0 cable modem supporting up to 32×8 channel bonding
- Optional DOCSIS 3.1 cable modem support
- Patented subcarrier scan for interference detection
- Spectrum view for identifying impulse noise and signal interference
- Home Installation Procedure (HIP) with configurable test limits
- Optional upstream signal generator supporting CW, QPSK, and QAM modulation formats
- Ethernet testing up to 10 GigE with SLA validation (BERT, throughput, RFC2544, Y.1564 SAM)
- Built-in TDR support for up to 2 km (6000 ft) of coaxial cable
- Single DS1 transmitter/receiver with balanced 100Ω interface for full and fractional DS1 testing
- Optional ISDN PRI call setup
