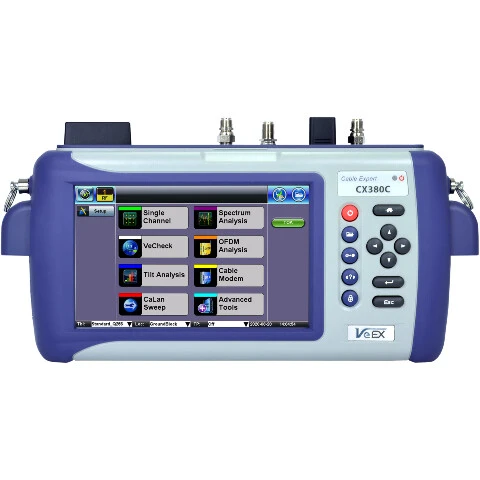

CX380C DOCSIS 3.X / 4.0
Advanced Plant Maintenance Tester
The CX380C is a next-generation plant maintenance solution designed for advanced CATV network testing. It integrates 1.8 GHz spectrum analysis and sweep, DOCSIS 3.1 OFDM testing, full SLM functions, V-Test speed testing, optical power measurement (OPM), and TDR/DMM capabilities in a single platform.
- Rugged, lightweight design built for demanding field environments
- 7-inch high-resolution colour touchscreen with intuitive graphical interface
- Ethernet LAN management port for remote access, back-office integration, and workforce management
- Multiple data transfer options, including USB, FTP, LAN, DOCSIS, Wi-Fi™, Bluetooth®, and USB modem support
- ReVeal™ PC software for configuration management, firmware updates, result processing, and report generation
- Interchangeable Li-ion battery packs for extended field operation
- User interface lock function for uninterrupted long-term testing
- Optional Wi-Fi Wiz with SSID analysis (InSSiDer)
- Optional USB digital fibre inspection scope
- Optional OPX-BOXe OTDR USB accessory
- High-speed 1.8 GHz spectrum analyser for advanced RF analysis
- Compatible with CaLan® 3010H+ Sweep System (forward path up to 1.8 GHz, return path up to 204 MHz)
- Full SLM measurement suite, including VeCheck full band scan, tilt, and single-channel testing
- In-service sweep capability for live network testing
- Advanced digital RF measurements, including MER, BER, equaliser response, HUM, centre frequency error, symbol rate error, frequency response, and group delay
- DOCSIS 3.1 cable modem with full OFDM analysis support
- Patented subcarrier scan technology
- V-Test throughput testing for RF and Layer 4+ interfaces
- Optional V-Perf Layer 4+ TCP performance testing
- Optional Physical layer testing with TDR and DMM support
- Optional Optical power meter functionality
