Network Service Assistant (NSA)
Network Service Assistant: Hybrid Qualification + Tester Bridging Certification and Network Testing Gap
Network Service Assistant (NSA) is a hybrid test solution bridging the divide between qualification and certification with Certi-Lite technology. Certi-Lite follows ANSI/TIA 1152-A single-ended testing for many parameters used in bi-directional certification. Single-ended testing does not qualify for cable manufacturer warranty approval, but offers deeper cable testing beyond simple wiremap for those not requiring warranty. IT departments often need to ensure cabling infrastructure meets test standards for applications or moves/adds/changes, historically requiring purchase of two or three different tester types. NSA offers a fraction of typical cost in a single device with wired, wireless, and certification capabilities. Modular design allows easy expansion as needs change or new capabilities like OTDR are added.
- Hybrid test solution combining qualification and certification technologies
- Certi-Lite technology follows ANSI/TIA 1152-A single-ended testing standards
- Eliminates need for multiple expensive testers in single cost-effective device

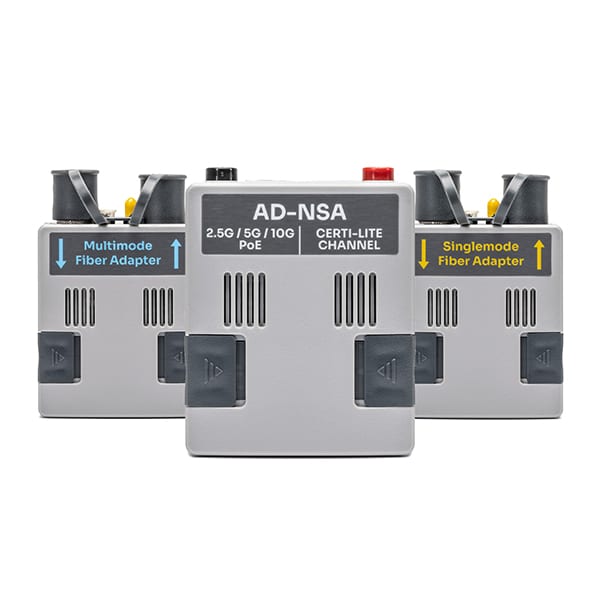

- Modular design enables easy expansion by hot-swapping test adaptors
- Supports wired, wireless, and certification testing capabilities
- Bridges gap between simple wiremap testing and full certification
- Lower cost alternative for infrastructure testing not requiring warranty approval
- Advanced link identification with live wiremap for connectivity verification
- RL, NEXT, and Shield locator capabilities for fault location
- Fibre optic testing with NSA Fibre Test, OTDR, and end face inspection
- Multi-Gigabit link speed qualification for modern networks
- Power over Ethernet (PoE) testing and validation capability
- Wireless network connectivity testing support
- Coax testing with Certi-Lite autotest

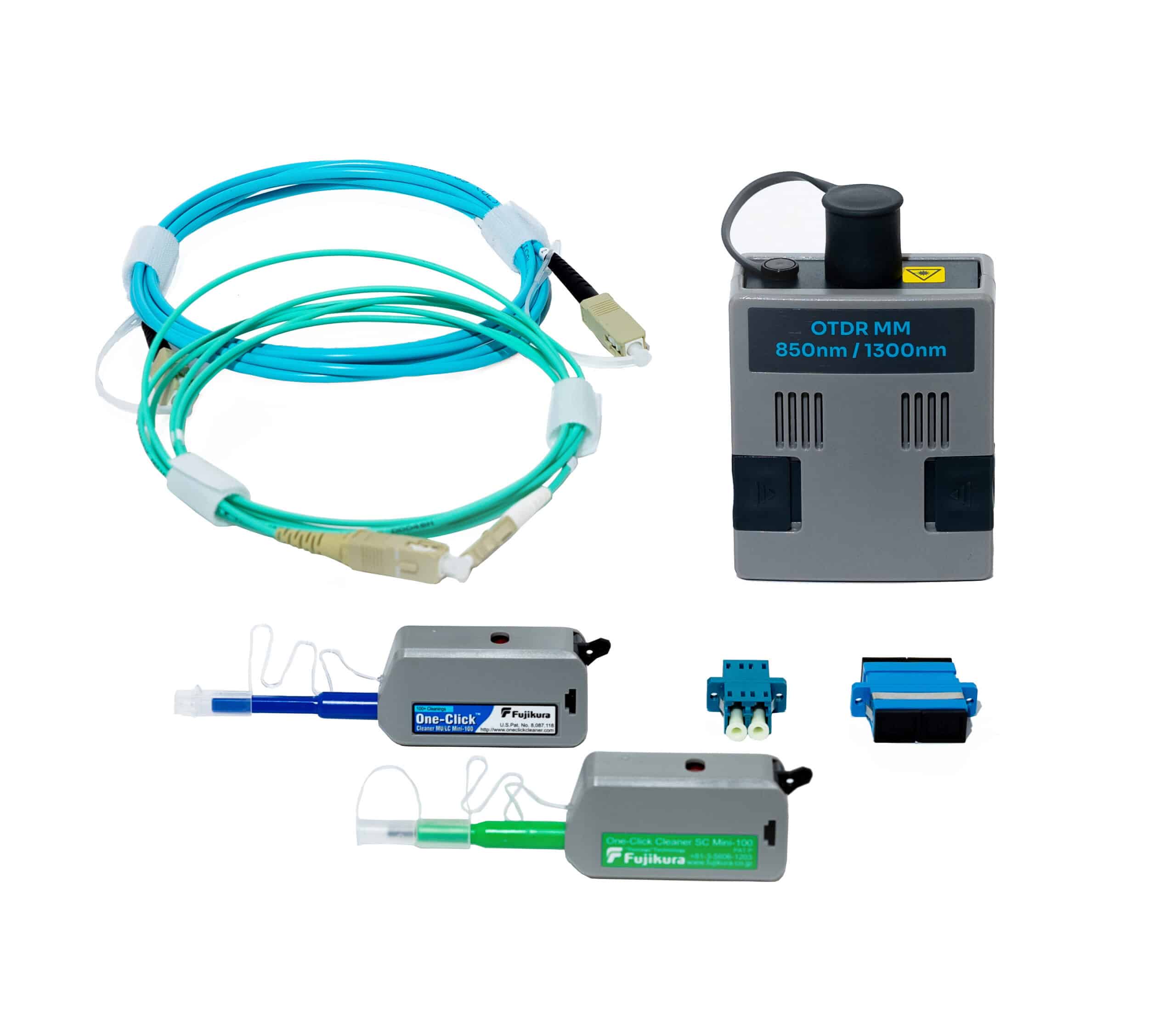

- OTDR adaptors compatible with NSA platform for advanced fibre testing
- Certi-Lite cable testing following ANSI/TIA 1152-A single-ended methodology
- Advanced link identification for comprehensive network mapping
- Live wiremap with audible and visual connectivity feedback
- RL locator for return loss fault identification and distance measurement
- NEXT locator for near-end crosstalk detection and location
- Shield locator for shielding integrity verification

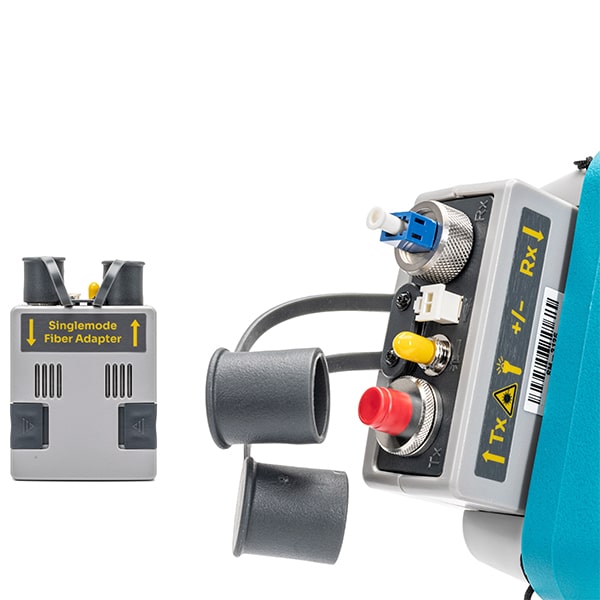

- NSA fibre test capabilities for fibre optic infrastructure validation
- Hybrid powered fibre testing for active fibre systems
- OTDR (Optical Time Domain Reflectometer) integration for fibre fault location
- Fibre end face inspection for connector cleanliness verification
- Multi-Gigabit link speed qualification testing for modern network requirements
- Power over Ethernet (PoE) testing with passthrough capability
- Ethernet signal-to-noise ratio (SNR) measurement
- Network connectivity testing with device discovery features
- Switch detail analysis for network infrastructure verification
- Wireless network connectivity testing for WiFi validation
- Coax Certi-Lite autotest for cable infrastructure verification
- Comprehensive test results management and reporting
- Modular platform supporting easy capability expansion
- Test Categories Supported: Copper twisted pair, fibre optic, coax, wireless networks
- Certi-Lite Standard: ANSI/TIA 1152-A single-ended testing
- Copper Testing: Advanced link identification, Certi-Lite parameters, distance to fault
- Fibre Testing: NSA Fibre Test, Tier 1 testing capability with OTDR option
- Locator Features: RL Locator, NEXT Locator, Shield Locator with distance measurement
- Advanced Functions: Multi-Gigabit qualification, PoE validation, SNR testing
- Wireless Support: Network connectivity testing for WiFi infrastructure
- Coax Support: Certi-Lite autotest for cable validation
- OTDR Capability: Compatible with advanced OTDR test adaptors
- Hybrid Powered Fibre: Support for testing active fibre systems
- Platform Design: Modular, hot-swappable test adaptors for expansion
- Test Results: Comprehensive results management and reporting
- End Face Inspection: Fibre connector cleanliness verification capability
- Network Device Discovery: Automatic device identification and connectivity mapping
- Switch Analysis: Detailed switch information and port mapping capability
- Application Support: Wired networks, wireless networks, infrastructure testing, moves/adds/changes support
