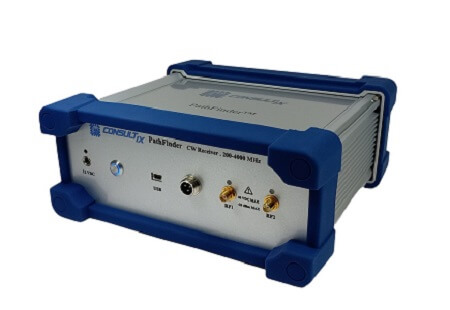

PathFinder™ CW Receiver
High-performance CW receiver for outdoor drive testing and RF coverage analysis
PathFinder™ is Consultix’s advanced CW receiver designed for outdoor CW drive-test applications and RF environment scanning. This compact, battery-powered device delivers high sampling speeds and strong immunity to interference, making it well suited for testing in dense RF environments.
Integrated with WalkView™ data collection software, PathFinder™ enables automatic testing and scanning of multiple CW signals. Its high-speed sampling supports parallel multi-band scanning while meeting the 40-λ Lee Criteria. Measurement results, including RSSI levels and location data, can be displayed on maps, archived, or exported to various radio planning tools for further analysis.
- Available in multi-band single-port and multi-band dual-port versions.
- Optional odometer interface for enhanced distance-based sampling accuracy.
- Eliminates the need for complex scanners and bulky field setups during outdoor CW testing.
- Works with the WalkView™ Android application for live measurement viewing.
- Allows RSSI levels to be displayed directly on Google Maps.
- Supports exporting geo-tagged measurement data to radio planning software.

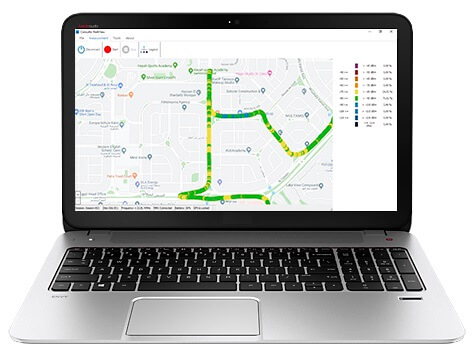

- Compatible with WalkView™ Windows version for efficient multi-band scanning.
- Portable handheld receiver designed for field measurements
- Multi-channel scanning with support for up to 12 channels
- Complies with 40-λ Lee Criteria with sampling rates up to 550 samples per second
- High sensitivity with DANL below -120 dBm
- Adjacent channel rejection of -40 dBc (@100 kHz)
- Distance sampling mode with wheel trigger support
WalkView™ Software:
- Available for both indoor and outdoor testing on Android devices
- Outdoor PC version with NMEA GPS support
- Supports a wide range of maps and floor plans
- Compatible with formats used by ASSET, Atoll, Planet, iBwave, MapInfo, and other planning tools
- Provides both raw and averaged data file exports
Supported Bands:
- 5G bands up to 4 GHz
- CBRS
- LTE
- UMTS / HSPA
- GSM / EDGE
- CDMA2000 / EV-DO
- Wi-Fi / WiMAX
- Public Safety / TETRA / LMR networks
- Frequency Range: 150 to 4200 MHz
- Number of Scanned Channels: Up to 12
- Minimum Frequency Step: 10 KHz
- DANL: <-120 dBm
- Modulation: CW
- Number of RF Ports: 1 or 2
- Battery Operation: 120 Minutes
- Weight: 2.3 kg (5 lb)
