Fully passive in-line connection with PoE passthrough ensures fail-safe network access and operation Compact and portable form factor (69 x 124 x 24 mm) enables rapid deployment anywhere USB powered with flexible options for 5 VDC input when needed Hardware timestamping with 8 nanosecond resolution for accurate performance metric analysis Captures complete full-duplex 10/100 Mbps traffic without any packet loss Non-intrusive monitoring that remains invisible to the network as a node Monitors all 7 OSI layers for comprehensive network visibility Multiple capture methods including direct to disk, live with Wireshark, or long-term to NAS

Portable design enables deployment in diverse network environments for quick troubleshooting Physical isolation between monitored network and management interface prevents injection and MITM attacks Compatible with major protocol analysers including Wireshark, CloudShark, ClearSight, OmniPeek, and others Packet slicing capability optimises disk storage and analysis workflow by capturing actionable data only Long-term traffic capture solution integrates with NAS for catching intermittent problems Flexible powering options support USB 3.0 port or 5 VDC input connector Cross-platform support for Windows, Linux, and macOS operating systems RoHS and CE certified with EN 45545-2 compliance for industrial applications

Monitoring Capacity: 10/100 Mbps monitoring on USB Connectors: 2 x RJ45 8-pin, 1 x USB 3.0, 1 x 5 VDC optional input Timestamp Resolution: 8 ns hardware timestamp at ingress Dimensions: 69 x 124 x 24 mm (2.72 x 4.88 x 0.94 inches) Power Supply: USB powered or 5 VDC input PoE Support: 802.3af, VoIP, and PoE passthrough System Requirements: Dual Core Processor, 4 GB memory, USB 3.0 port Supported Operating Systems: Windows 7/8/10/11, Linux, macOS Included Accessories: 1.8m USB 3.0 cable, RJ45 cable, protective pouch, USB key Certifications: RoHS, CE, EN 45545-2 compliant

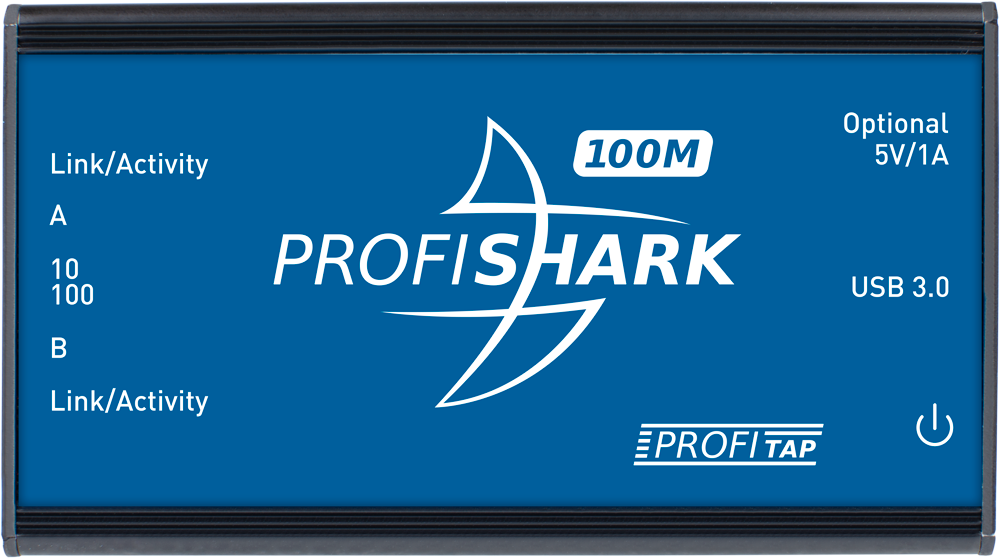

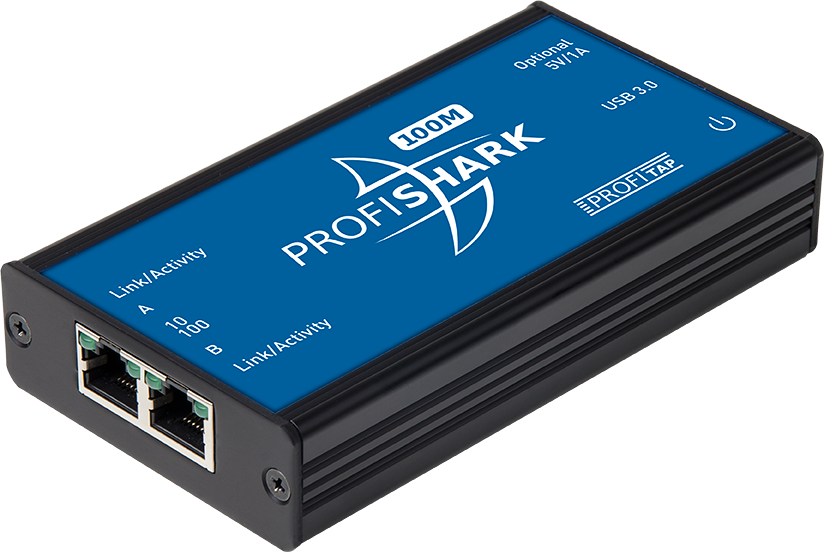

ProfiShark 100M

Compact Portable Ethernet TAP Device for Industrial Network Monitoring and Troubleshooting

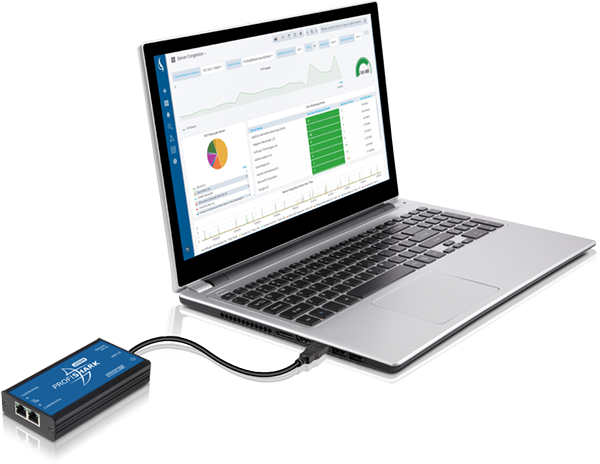

ProfiShark 100M is a portable network TAP and troubleshooter designed for industrial networks. It provides fully passive in-line connection with PoE passthrough for fail-safe network access. The device captures and aggregates full-duplex 10/100 traffic without dropping packets while monitoring all 7 OSI layers. With its compact design and USB-powered operation, ProfiShark 100M enables rapid deployment for daily network troubleshooting tasks. It supports analysis of both regular IP networks and industrial network protocols. The device offers hardware timestamping at 8 nanosecond resolution and non-intrusive monitoring that remains invisible to the network, making it ideal for capturing high-fidelity traffic data with multiple analysis options including live capture with Wireshark or long-term storage on NAS systems.
