Versatile SFP/SFP+ connectivity supports 1G/10G copper and fibre networks simultaneously 5 nanosecond hardware timestamp resolution plus advanced GPS/GLONASS UTC timestamping PPS input/output connectors enable precision timestamp synchronisation across networks Hardware filtering and deep packet inspection operating at wire speed (20 Gbps) Portable form factor designed for rapid field deployment and troubleshooting USB 3.0 powered with optional 5 VDC input for flexible installation options Multiple capture modes: direct to disk, live analysis, or long-term NAS storage Compatible with Wireshark, CloudShark, ClearSight, OmniPeek, and many analysers

Advanced GPS/GLONASS UTC timestamping enables precision time synchronisation across distributed networks PPS input/output supports external timing and frequency reference requirements for synchronisation Configurable hardware filters support packet type, MAC, IP, protocol, ports, and string matching Packet slicing capability optimises storage consumption and analysis workflow efficiency Deep packet inspection enables content-based traffic filtering and intelligent capture control Physical isolation between monitored network and management interface prevents injection attacks In-line and out-of-band deployment flexibility from SPAN/mirror ports or external TAPs Cross-platform support includes Windows 7/8/10/11, Linux, and macOS systems

Monitoring Capacity: 1G/10G monitoring on USB 3.0 Connectors: 2 x SFP/SFP+, 1 x USB 3.0, 1 x 5 VDC optional input, 1 x SMA female (PPS), 1 x SMA female (GPS) Supported Transceivers: 1G copper (RJ45), 1G fibre (SX 850nm/LX 1310nm), 10G copper (RJ45), 10G fibre (SR 850nm/LR 1310nm) Timestamp Resolution: 5 ns hardware timestamp at ingress with GNSS UTC timestamping GNSS Support: GPS/GLONASS UTC timestamping with PPS synchronisation (input/output) Dimensions: 105 x 124 x 26 mm (4.13 x 4.88 x 1.02 inches) Power Supply: USB 3.0 powered or 5 VDC input Hardware Filtering: Wire-speed filtering at 20 Gbps with multiple configuration options System Requirements: Dual Core Processor, 4 GB memory, USB 3.0 port Supported Operating Systems: Windows 7/8/10/11, Linux, macOS Included Accessories: GPS/GLONASS Antenna, 1.8m USB 3.0 cable, 1.5m USB A to DC 5V adaptor, USB key Deployment Modes: In-line and out-of-band configurations

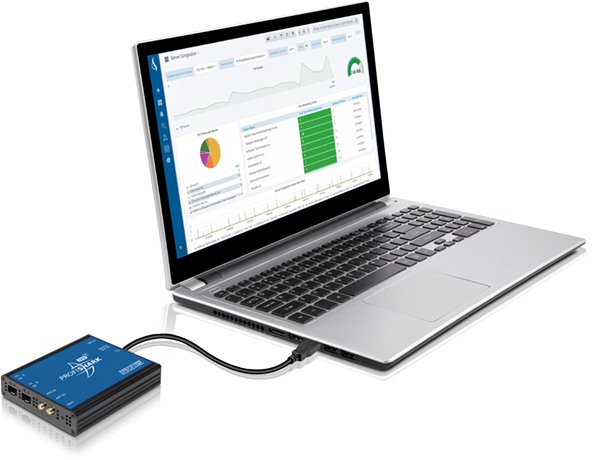

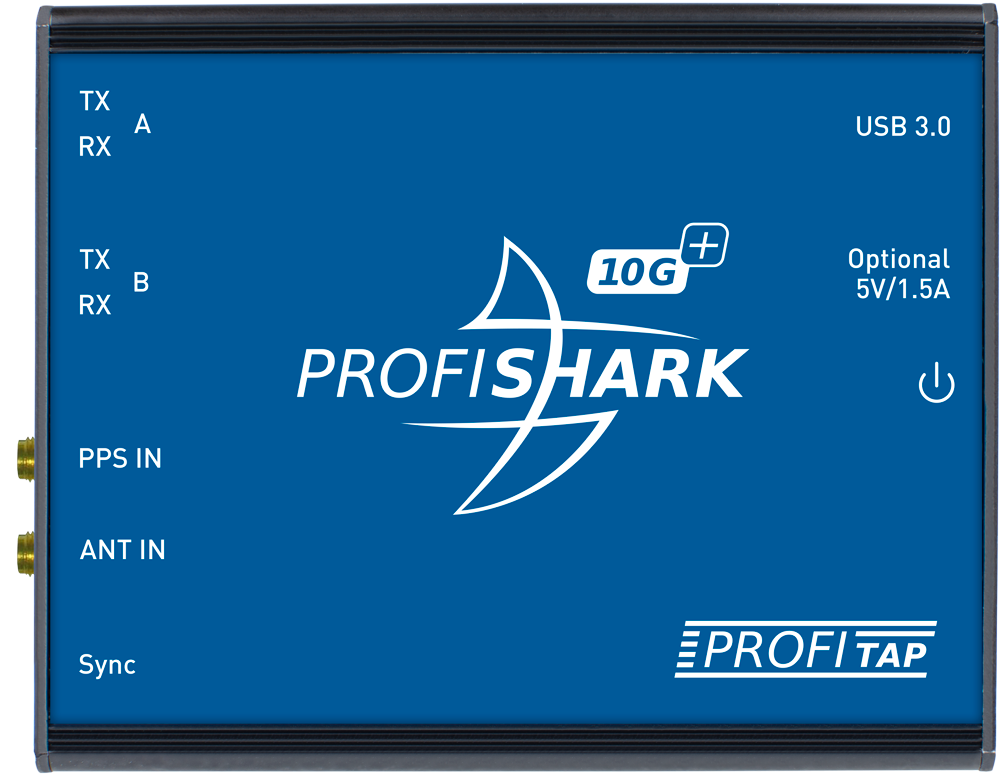

ProfiShark 10G+

Ultimate Portable Network TAP with Advanced GPS and Timestamp Synchronisation

ProfiShark 10G+ is a powerful, versatile portable network TAP with advanced timestamping capabilities. It combines all features of ProfiShark 10G with GPS/GLONASS input for UTC timestamping and PPS input/output for timestamp synchronisation. The device accepts 1G fibre, 10G fibre, 1G copper, and 10G copper SFPs for complete network visibility. Powered by USB 3.0, ProfiShark 10G+ captures high-fidelity network traffic with 5 nanosecond hardware timestamping. It supports in-line and out-of-band deployment modes with hardware filters operating at wire speed (20 Gbps) for efficient packet capture and analysis. Captured packets can be analysed with Wireshark or any network analyser through ProfiShark Manager application.
