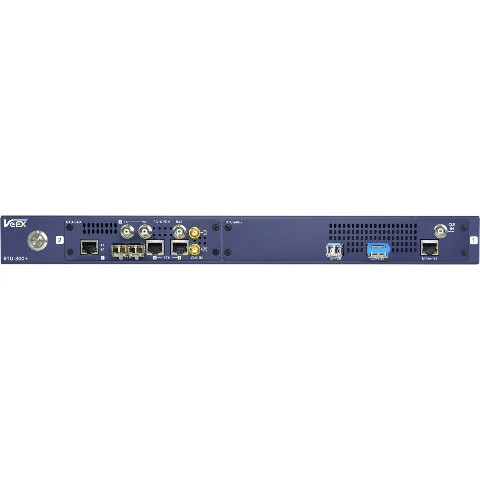

RTU-300+ Ethernet Test Unit
RTU-300+ Centralised Modular Test Platform: Scalable Multi-Service Testing Solution for Network Operations
RTU-300+ is a self-contained, scalable 1U rack mount centralised test solution offering plug-and-play operation with single or dual test module configurations. Multi-service, multi-user, rack-mounted platform specially designed for service turn-up and maintenance for Access, Edge, Metro, and Core networks. Supports testing from 10M to 100GE with up to two factory-installed test modules providing support for up to four independent simultaneous tests. Ideal for different service life cycles including provisioning, activation, and service assurance. Can be deployed standalone with web browser and VNC access or integrated into VeSion cloud-based system for centralised testing and troubleshooting. Supports multi-user remote access and optional one-way latency measurements with built-in GNSS receiver.
- Scalable 1U 19-inch rack mount platform with plug-and-play module installation
- Up to two factory-installed test modules supporting four independent simultaneous tests
- Multi-service testing from 10M to 100GE across Ethernet, Fibre Channel, OTN, SDH, SONET, PDH, DSn
- Flexible powering with dual redundant 15V AC/DC adaptors or -48V DC supply options
- Standalone operation with web browser and VNC access for immediate deployment
- VeSion cloud-based system integration for centralised network troubleshooting
- Multi-user remote access supporting up to 4 simultaneous users
- Optional built-in GNSS receiver for one-way latency measurements
- Internal 16GB flash storage with external USB memory support up to 64GB
- Cloud connectivity via R-Server, VeSion, VeExpress, and EZ Remote
- Ideal for broadband service verification combining Layer 2/3 throughput and stateful TCP testing
- Supports distribution across service provider network for service assurance monitoring
- Modular architecture supporting RTU-340 (64k to 2x10G) and RTU-600x (25G to 112G) modules
- Independent and simultaneous measurements with flexible module combinations
- Y.1564 V-SAM compliance for multi-service qualification and troubleshooting
- RFC6349 V-PERF TCP testing with stateful client and server modes for application-layer verification
- Layer 2/3 throughput testing for verifying Committed Information Rate (CIR) and key performance metrics
- Round-trip delay and one-way delay measurement with optional GNSS timing reference
- Packet delay variation, frame loss, and bandwidth rate measurements
- Support for distributed RTU deployment throughout service provider network for maintenance testing
- Centralised troubleshooting and problem resolution through VeSion architecture
- Ethernet management interface (10/100BASE-T) with USB 2.0 and RS232 serial console ports
- Redundant external power supply configuration for high availability
- Cloud-based storage and management through VeExpress and EZ Remote
- iPerf server compatibility for TCP performance testing
- Modular Support: Up to 2 factory-installed test modules (RTU-340 and/or RTU-600x)
- Test Coverage: 10M to 100 Gbps depending on module configuration
- Independent Tests: Up to 4 simultaneous independent tests
- Module Options:
- RTU-340: 64k to 2x10G multi-service testing (Ethernet, Fibre Channel, EoOTN, OTN, SDH, SONET, PDH, DSn)
2. RTU-600x: 25G to 112G multi-service testing (Ethernet, Fibre Channel, EoOTN, OTN)
- Supported Protocols: Ethernet, Fibre Channel, OTN, SDH, SONET, PDH, DSn, IEEE C37.94
- Test Modes: VeSion Cloud-Based System and Standalone (Web Browser)
- Dimensions: 4.4 x 48.26 x 30 cm (1.75 x 19 x 11.8 inches), 1U rack-mounted 19-inch wide
- Weight: 3.62 kg (8 lb) with 2x RTU-340, 3.92 kg (8.63 lb) with 1x RTU-340
- Power Consumption: RTU-300+ chassis 10W, RTU-340 module 20W each, RTU-600x 100G module 60W
- Power Supply Options:
- AC/DC adapter: Input 100-240 VAC 50/60 Hz 1.5A, Output 15V DC 13.4A
- Rack mount 48V: -48V DC 4.17A
- Redundant dual 15V configuration available
- Management Interfaces: Ethernet RJ45 10/100BASE-T FDX, USB 2.0 Type-A, RS232 serial console
- Data Storage: Internal 16GB Flash, External USB memory up to 64GB
- Timing Reference: Optional GPS/GNSS Receiver for precise timing and one-way latency
- Cloud Connectivity: R-Server, VeSion, VeExpress, EZ Remote
- Multi-User Support: Up to 4 simultaneous remote user access and control
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Humidity: 5% to 90% relative humidity non-condensing
- Test Applications: Service provisioning, activation, maintenance, assurance, broadband verification
- Certifications: RoHS compliant and Lead Free per Directive 2002/95/EC
