RTU-340 Dual 10G Ethernet Test Unit
RTU-340 Dual 10G Test Module: Comprehensive Centralised Test Solution for Transport Networks

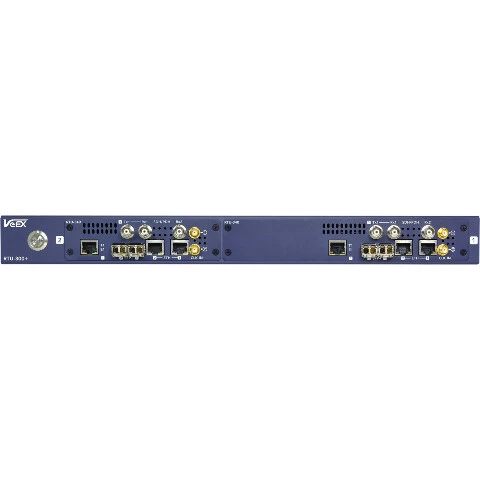

RTU-340 hardware option for RTU-300+ standalone platform offers full-featured centralised test solutions for Ethernet, OTN, SONET/SDH, PDH/DSn, Fibre Channel, and OBSAI. Factory-installed hardware options provide flexibility to fit any application including addition of second RTU-340 or 100G (RTU-600x) modules installed concurrently in same test platform. Optimised for centralised testing with up to two factory-installed test modules supporting four dedicated test ports. Rugged 1U 19-inch rack mount profile ideal for testing at different service life cycles including provisioning, activation, and service assurance. Web browser and VNC access in standalone operation supports up to four test groups with independent simultaneous measurements and up to four remote user sessions.
- Dual 10G test ports for simultaneous testing on Ethernet, Fibre Channel, and OTN applications
- Supports 1GE and 10GE optical (SFP+) and electrical (RJ45) interfaces concurrently
- RFC2544 compliance testing with automated throughput, latency, frame loss, and back-to-back tests
- ITU-T Y.1564 V-SAM test suite for multi-service qualification and troubleshooting
- IEEE 802.3ah, 802.1ag, ITU-T Y.1731, and MPLS-TP OAM support for comprehensive service management
- V-PERF TCP/UDP testing compliant with RFC6349 methodology for application-layer performance
- Multi-stream testing up to 16 independent traffic streams on 1GE and 10GE interfaces
- Fibre Channel 1G to 10G layer FC-1 and FC-2 throughput testing with RFC2544 support
- OTN/SDH/SONET/PDH/DSn testing with flexible mapping and multiplexing capabilities
- Service Disruption Time (SDT) and Automatic Protection Switching (APS) measurements
- Packet capture and decode with Wireshark integration for protocol analysis
- Auto Scripting for automated test sequences with configurable durations and pass/fail control
- RFC2544 Advanced SLA Mode with primary stream and up to seven independent background traffic streams
- Q-in-Q (VLAN stacking), MPLS, MPLS-TP, and Provider Backbone Bridging (PBB/MAC-in-MAC) support
- Ethernet OAM testing including Link Fault Management (IEEE 802.3ah) and Service Level OAM (IEEE 802.1ag/Y.1731)
- Layer 2 Control Protocol Transparency test per MEF 45 standard with Cisco L2CP frame formats
- Smart Loopback modes at Layer 1, 2, 3, and 4 with configurable MAC/VLAN/IP filtering
- Intelligent network discovery enabling remote control of loopback and peer-to-peer testing
- VLAN Scan and Monitor discovering all VLAN flows including Q-in-Q tagging with up to 8 streams
- IPv6 support for test traffic generation, loopback capability, and connectivity testing
- Layer 4-7 features including FTP throughput testing and HTTP testing with Ookla Speedtest compatibility
- Line rate packet capture with protocol decode compatible with Wireshark and PCAP format export
- Advanced OTN testing with EoOTN support, overhead manipulation, and Tandem Connection Monitoring
- SDH/SONET overhead analysis and generation with pointer testing and APS measurements
- PDH/DSn testing from 140 Mbps (E4) down to 64k bps with pulse mask analysis
- Fibre Channel Full-duplex testing with primitive sequence protocol and buffer-to-buffer credit support
- Test Ports (per module): 2x SFP+/SFP (Ethernet, Fibre Channel, OTN), 2x RJ45 (1000/100/10BASE-T), 3x BNC (SDH/SONET), 1x RJ48 (PDH/DSn)
- Ethernet Rates: 10GBase-X, 1000Base-X, 100Base-FX, 10GBase-T, 5GBase-T, 2.5GBase-T
- Maximum Throughput: 10 Gbps per port full-duplex
- Frame Sizes: 64 bytes to 10,000 bytes (RFC2544 Layer 4 tests limited to 1518 bytes)
- Multi-Stream Support: 16 independent streams on 1GE and 10GE interfaces
- RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 bytes plus 2 user-configurable sizes
- OTN Support: OTU2, OTU1, OTU2e, OTU1e with EoOTN for Ethernet over OTN testing
- SDH/SONET Support: STM-64/16/4/1/0, OC-192/48/12/3/1, STS-1 with full multiplexing and mapping
- PDH/DSn Support: E4 (140 Mbps), DS3 (45 Mbps), E3 (34 Mbps), E2 (8.4 Mbps), E1 (2 Mbps), DS1 (1.5 Mbps) down to 64k bps
- Fibre Channel Support: 1, 2, 4, 8, 10 Gbps with FC-1 and FC-2 layer testing
- Fibre Channel Rates: 1.0625 Gbps, 2.125 Gbps, 4.25 Gbps, 8.5 Gbps, 10.52 Gbps
- Transmit Clock Sources: Internal (±3.5 ppm), Recovered, or External (1.544/2.048/10 MHz via SMA)
- Frequency Offset: Up to 50 ppm (25,000 ppm for E1) in 0.1 ppm steps
- Dimensions: 4.4 x 48.26 x 30 cm (1.75 x 19 x 11.8 inches), 1U rack-mounted 19-inch wide
- Weight: 3.62 kg (8 lb) single module, 3.92 kg (8.63 lb) dual modules
- Power Consumption: RTU-300+ chassis 10W, RTU-340 module 20W each
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Humidity: 5% to 90% relative humidity non-condensing
- Management: Web browser, VNC access, up to 4 remote user sessions, 4 independent test groups
- Test Modes: VeSion Standalone, Peer-to-Peer Controller/Responder, loopback modes
- Error Patterns: PRBS (2^7 to 2^31), Fixed patterns (0000, 1111, 1010, 1100, etc.), user-defined sequences
- Certifications: RoHS compliant and Lead Free per Directive 2002/95/EC
