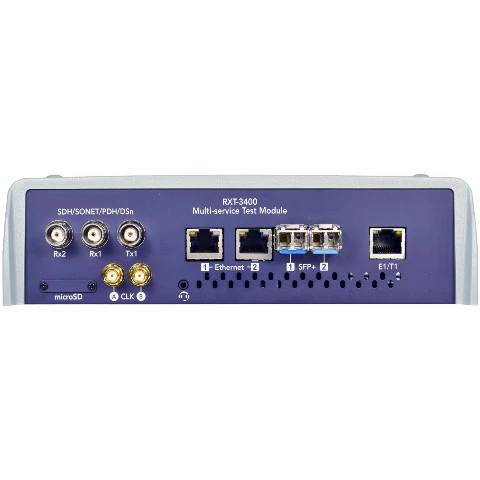

RXT-3400 Advanced Multi-Service Test Module
Advanced Multi-Service Test Module for High-Performance Network Testing
The RXT-3400 is an advanced add-on module for the versatile RXT® test platform, delivering comprehensive multi-service testing across Access, Metro, Core, Transport, Carrier Ethernet, Backhaul, Fronthaul, and SAN environments up to 16GFC.
It is part of the RXT family, a highly flexible, compact, and future-ready handheld test solution supporting technologies from 64k to 400GE, including Fibre Optics and WDM applications.
General
- Flexible all-in-one multi-service test solution from 64 kbps to 14 Gbps
- Supports integration with 400G, 100G/40G, OTDR, and OSA modules
- Two fully independent test port groups for parallel testing
Ethernet Testing
- RFC2544 testing (throughput, latency, frame loss, back-to-back)
- V-SAM test suite compliant with ITU-T Y.1564
- IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, MPLS-TP OAM support
- VLAN stacking (Q-in-Q), MPLS, MPLS-TP, and PBB support
- RFC6349 V-PERF TCP/UDP test suite
- Layer 2 control protocol transparency testing
- In-service monitoring with packet capture and on-screen protocol decode
- One-way latency measurement with optional GNSS receiver
- SyncE and ITU-T G.8261 support
- Master and slave clock emulation
- Wander measurement and MTIE/TDEV analysis
- ESMC SSM generation, monitoring, and decoding
- VoIP and IPTV testing support
CPRI Testing
- CPRI Layer 2 testing with REC/BBU and RE/RRH emulation
- BER testing using PRBS stress patterns
- Latency measurement support
OTN / SDH / SONET / PDH / DSn
- Advanced payload mapping/multiplexing including EoOTN (ODU2e, ODU0, ODUflex)
- Overhead monitoring and byte decoding
- Protection switching and Service Disruption Time (SDT) measurement
- Round trip delay across all interfaces and payload mappings
- Tandem connection monitoring support
- Jitter and wander analysis (E1, E3, DS1, DS3, STM-1o, OC-3)
- Pulse mask analysis for E1, E3, DS1, DS3 rates
Fibre Channel
- SAN testing up to 16GFC
- BERT, throughput, and RFC2544 testing
- Layer 1 and Layer 2 loopback support
- In-service monitoring with capture and protocol decode
Test Interfaces
- 2 × SFP+/SFP
Technology – Ethernet / Fibre Channel / OTN / SDH / SONET / CPRI / IEEE C37.94
Rates / Details – 10GBase-X, 1000Base-X, 100Base-FX, 10GBase-T, 5GBase-T, 2.5GBase-T; 16G–1G FC; OTU2e/OTU1e/OTU2/OTU1; STM64/16/4/1/0; OC192/48/12/3/1; 12.168G–614.4M; 64k–768k
- 2 × RJ45
Technology -Ethernet
Rates / Details – 1000/100/10Base-T
- 3 × BNC2
Technology – SDH / SONET / PDH / DSn
Rates / Details – STM1/0, STS3/1; E4, E3, E2, E1, T3
- 1 × RJ481
Technology – PDH / DSn
Rates / Details – E1, T1, 64K Codirectional
- 2 × SMA
Technology – Clock (External)
Rates / Details – 1PPS, 1.544/2.048/10 MHz, 2.048 Mbps, 1.544 Mbps
