Software Modular software architecture supporting a wide range of network technologies and test applications ReVeal™ PC software for firmware updates, test configuration management, result processing, and report generation Fiberizer Desktop for advanced fibre trace analysis Fiberizer Cloud for trace storage, analysis, and data management R-Server integration for centralised workforce coordination and test result management Hardware Field Replaceable Optical Connector Protector System (US Patent 12,481,111) designed to extend connector life and reduce downtime High-resolution 7-inch TFT colour touchscreen with excellent visibility in various lighting environments Connectivity options including 10/100Base-T, Wi-Fi™, Bluetooth®, and 3G connectivity Integrated microphone and speaker for VoIP and VF applications Intelligent cooling system with built-in temperature monitoring Replaceable Li-ion battery pack for extended field operation USB-A connectivity for flash drives and fibre inspection probes Optional GPS module for geotagging OTDR test results

Optical Testing Supports multimode and single-mode testing at 850, 1300, 1310, 1490, 1550, 1625, and 1650 nm wavelengths Filtered 1625 nm or 1650 nm OTDR port for live network testing Live fibre detection on OTDR ports to help prevent service disruption High dynamic range for long-distance fibre characterisation Up to 500,000 sampling points for detailed trace analysis FTTx and PON-optimised testing with enhanced dead-zone performance Typical event dead zone below 0.8 m and attenuation dead zone below 3.5 m Supports Telcordia GR-196 and SR-4731 .sor file formats Optional V-Scout/V-Profile Smart Link Mapping for simplified network visualisation Optional built-in Visual Fault Locator (VFL) Optional Optical Power Meter with WaveID detection Optional Light Source with WaveID and Loop mode support Optional USB Fibre Inspection Scope Direct upload of OTDR traces, OLTS results, and fibre inspection images to Fiberizer Cloud Integrated G.657 launch fibre Universal 2.5 mm optical interfaces with interchangeable SC, FC, ST, and LC adaptors

Data Sheet – Download Technical Note: Measuring OTDR Reflectance and ORL – Download White Paper: Understanding Optical Time Domain Reflectometers – Download User Guide: EZ Remote Cloud Service Introduction – Download OTDR Series User Manual – Download

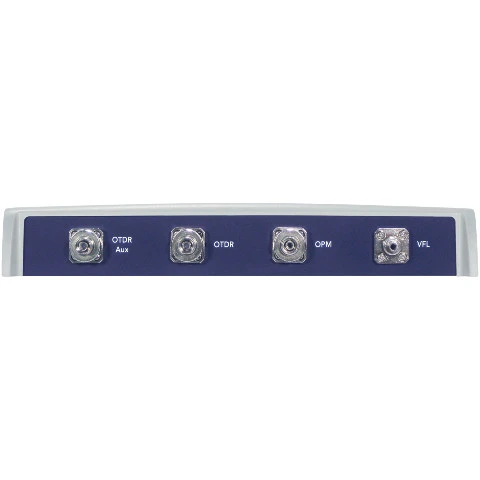

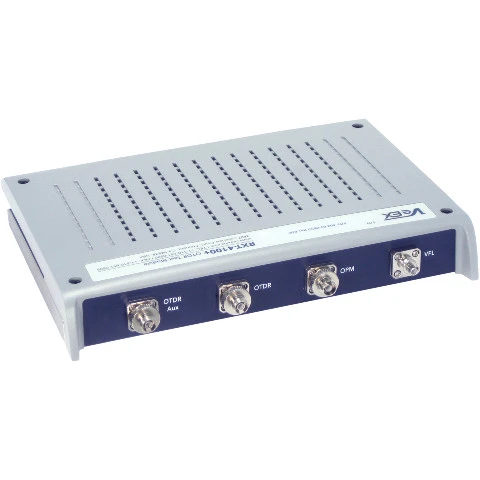

RXT- 4100+ OTDR Modules

The RXT-4100+ Fibre Optics Test Module for the VeEX® RXT-1200 platform is designed for advanced fibre network testing and analysis. Offering up to 500,000 sampling points with 3 cm resolution, it delivers detailed OTDR measurements for installation, maintenance, and troubleshooting applications.

The module combines OTDR, Optical Power Meter (OPM), Light Source, and Visual Fault Locator (VFL) capabilities within a single platform. It also supports testing and verification of OTN, SDH/SONET, Ethernet, Fibre Channel, Synchronous Packet Networks, and CWDM/DWDM optical networks, helping technicians perform multiple test functions from one device.

Fiberizer® software for Windows®, Android™, and Apple® devices simplifies data transfer, trace management, and report generation across VeEX fibre testing solutions. View the Fiberizer webpage for more details.
