Modular 4U chassis supporting up to 12 test modules Two versions: B720 (standard) and B2400 (high-performance) Supports traffic generation, network emulation, and multi-speed Ethernet testing Wide scalability from 10Mbps to 800Gbps (B2400) Optimised for high-density, low-power test environments Supports advanced test scenarios including complex module combinations Designed for R&D, lab, and production testing environments

B720 / B2400 Configuration Support B720 supports configurations from 10Mbps to 10Gbps using Odin series modules B2400 required for high-performance modules: Z800 Freya, Z400 Thor, Z100 Loki, and E100 Chimera B2400 enables configurations from 10Mbps to 800Gbps 1.6Tbps Z1608 Edun is only available in XenaCompact chassis One Xena B2400 can hold up to: 6 × 800Gbps ports using Z800 Freya 12 × 400Gbps ports using Z800 Freya 24 × 200Gbps ports using Z800 Freya 40 × 100Gbps ports using Z800 Freya 12 × 400Gbps ports using Z400qx Thor 36 × 100Gbps ports using Z100 Loki 36 × 50Gbps ports using Z100 Loki 36 × 40Gbps ports using Z100 Loki 72 × 25Gbps ports using Z100 Loki 72 × 10Gbps ports using Z100 Loki 72 × 5Gbps copper ports using Z10 Odin 72 × 2.5Gbps copper ports using Z10 Odin 72 × 1Gbps copper/optical ports using Z1 Odin Module Slot Architecture Total: 12 slots per chassis Z800 Freya: 2-slot module Z400 Thor: 3-slot module (2-slot with Z400qx Thor variant) Z100 Loki: 1-slot module (max 9 modules in groups of 3) E100 Chimera: 1-slot module (max 9 modules in groups of 3) Z10 Odin: 1-slot module Example configuration: 1 × Z800 Freya + 1 × Z400 Thor + 3 × Z100 Loki + 4 × Z10 Odin

Physical Specifications

12 slots in a 4U high chassis Dimensions: 7” (H) x 19” (W) x 19.5” (D) (17.7 x 48.3 x 49.5 cm) Weight: 36.4 lbs (14.5 kg) (B720) without modules Weight: 39.0 lbs (17.58 kg) (B2400) without modules Max noise: 54 dBa (B720) Max noise: 65 dBa (B2400)

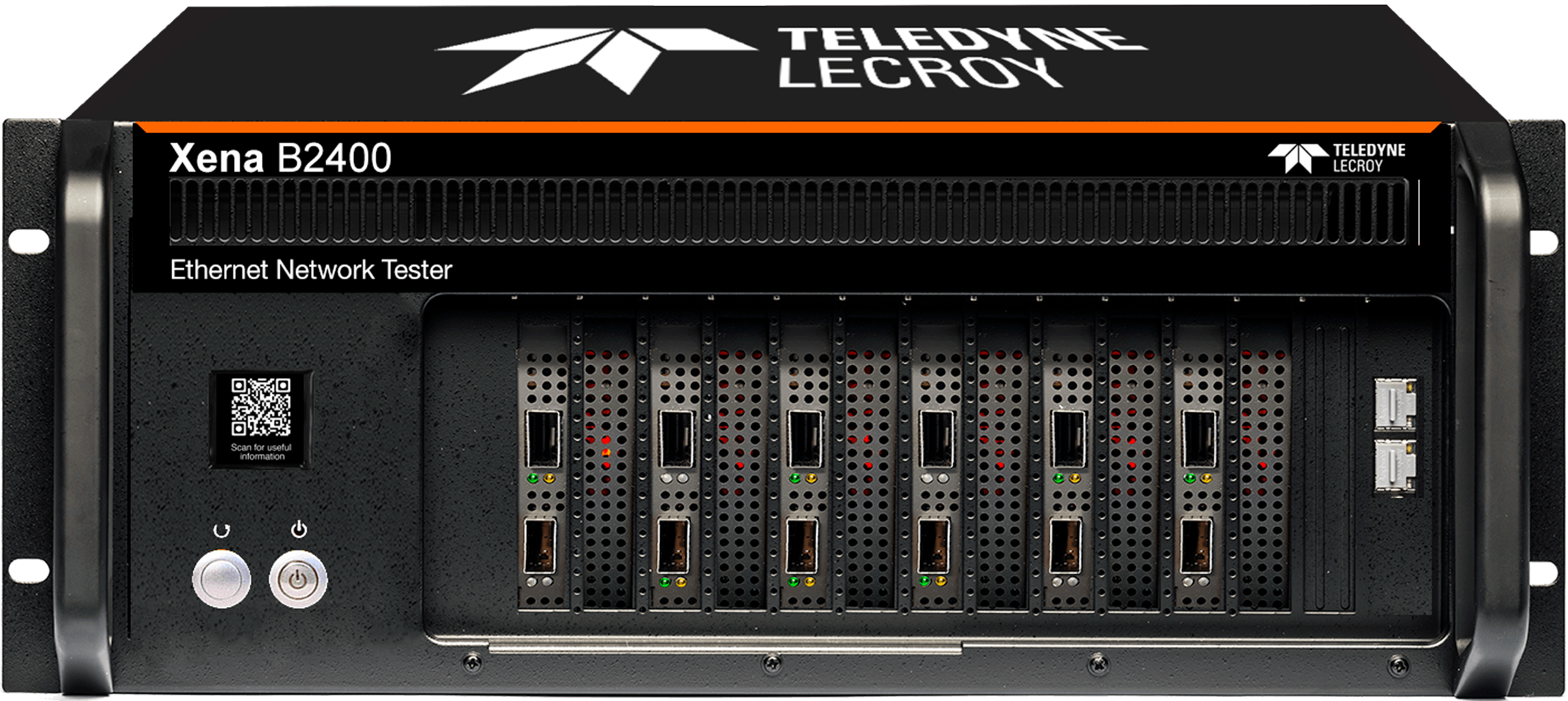

Xena B720 / B2400

High-density modular Ethernet test chassis for scalable multi-speed traffic generation

The Xena B720 and B2400 are 4U modular chassis systems designed to support up to 12 Xena Ethernet test modules, enabling scalable high-port-density testing for modern Ethernet networks.

Both versions support flexible configurations across a wide range of speeds. The B720 supports 10Mbps to 10Gbps using Odin series modules, while the B2400 supports advanced high-speed traffic generation and emulation from 10Mbps up to 800Gbps, including Freya, Thor, Loki, Odin, and Chimera modules.
