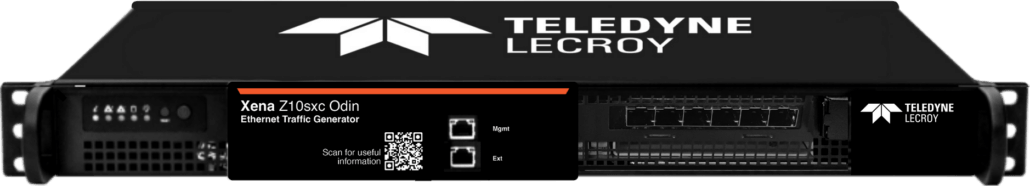

Xena Z10 Odin Ethernet Traffic Generator
Multi-speed NRZ Ethernet test solution for accurate 10Mbps to 10Gbps device validation
Z10 Odin is part of Xena Networks’ Ethernet traffic generation platform, designed to test and validate Ethernet devices across multiple speeds from 10Mbps up to 10Gbps. It is built for accurate performance, QA, compliance, and functional testing of modern and legacy network equipment.
Operating using NRZ (Non-Return-to-Zero) modulation, Z10 Odin generates reliable Ethernet traffic for real-world network validation. It is part of a broader Xena ecosystem that includes higher-speed platforms such as Z100 Loki, Z400 Thor, Z800 Freya, and Z1608 Edun, covering testing needs up to 1.6Tbps.
- Supports Ethernet testing across 10Mbps, 100Mbps, 1G, 2.5G, 5G, and 10G speeds
- Uses NRZ modulation for accurate and deterministic Ethernet traffic generation
- Enables validation of Ethernet devices for performance, QA, and compliance testing
- Part of the scalable Xena test ecosystem (Loki, Thor, Freya, Edun platforms)
- Supports both copper and optical Ethernet interfaces depending on configuration
- Provides automated testing support for RFC2544, Y.1564, RFC2889, and RFC3918
- Enables functional, performance, and compliance testing in lab environments
- Available in multiple hardware variants across Compact and modular chassis systems
- NRZ Ethernet traffic generation up to 10Gbps line-rate performance
- Multi-speed support: 10M / 100M / 1G / 2.5G / 5G / 10G testing
- Hardware variants including SFP+, RJ45, and mixed-interface configurations
- Available in Xena Compact 1U chassis and modular 4U chassis systems
- Supports copper Ethernet (Base-T) and optical SFP/SFP+ modules
- Integrated software suite: XenaManager and automation tools for test execution
- Supports RFC2544, Y.1564, RFC2889, and RFC3918 test methodologies
- Automated performance, regression, and compliance testing workflows
- Scalable architecture for lab, enterprise, and telecom environments
- Special variant support for automotive Ethernet ECU testing (select models)
Z10 Odin Series (Variants Overview)
Z10sx Odin
- Interfaces: 6 × SFP+
- Speeds: 10M / 100M / 1G / 2.5G / 5G / 10G (copper & optical options)
- Platform: Compact 1U / Modular chassis support
Z10s Odin
- Interfaces: 6 × SFP+
- Speeds: 10GBASE-SR / LR / ER, 1G–10G DAC support
- Platform: Compact 1U / Modular chassis support
Z10cc Odin
- Interfaces: 2 × SFP+ + 4 × SFP
- Speeds: 10G optical and 1G–10G DAC support
- Platform: Compact chassis only
Z10r Odin
- Interfaces: 6 × RJ45
- Speeds: 100M / 1G / 2.5G / 5G / 10G Base-T copper
- Platform: Compact / Modular chassis support
Z01s Odin
- Interfaces: 6 × SFP
- Speeds: 100M / 1G optical and Base-T support
- Platform: Compact / Modular chassis support
Z01sx Odin (Enhanced Variant)
- Interfaces: 6 × SFP
- Enhanced features: 256 transmit streams (vs 32), 6 modifiers per stream (vs 2), PFC support
- Platform: Compact / Modular chassis support
Z01t Odin
- Interfaces: 3 × RJ45
- Speeds: 100M / 1G Base-T copper
- Platform: Compact / Modular chassis support
