CellScout – Mobile Network Surveyor
CellScout, a 4G/5G RF network surveyor designed for field testing and network performance validation. Supporting private 5G SA networks as well including the special bands of n77 and n79 with special gadgets for 5G SA Slicing.
CellScout has seen a very strong launch in Australia in 2025, with over 220 units already deployed, primarily within Telstra projects, supporting network survey, rollout, 5G slicing, and optimisation activities.
The CellScout sits in a sweet spot compared to other test gear people play with.
- Handheld RF Scanner for 4G/5G (NSA/SA)
- All Australian Bands Supported + Private and Emergency ones like n77 and n79
- SIM and SIM-less scanning

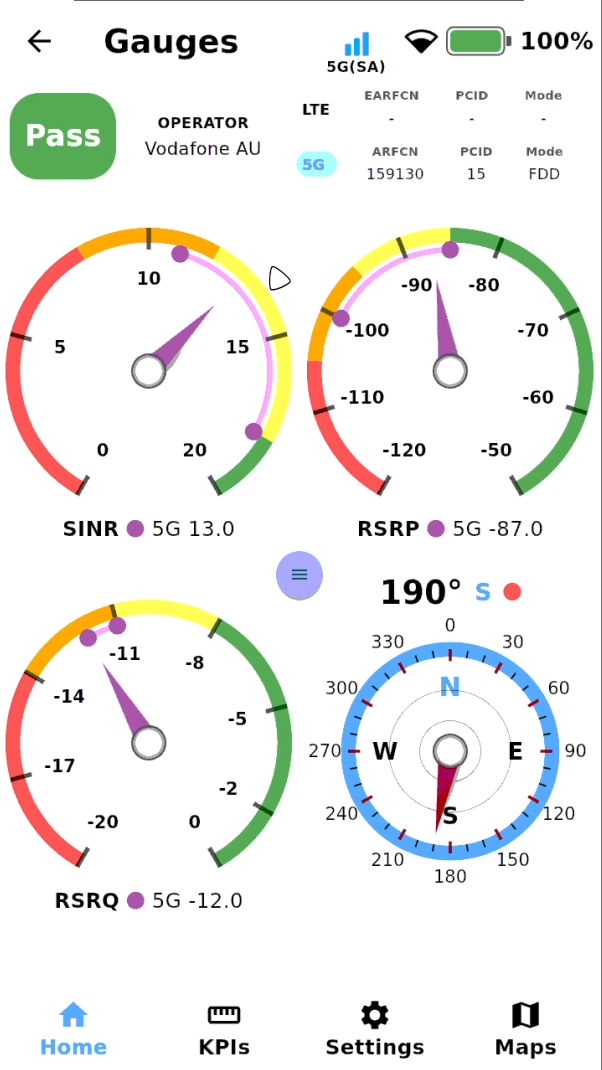

- RSSI, RSRP, RSRQ and SINR measurement in Gauge and Graph views

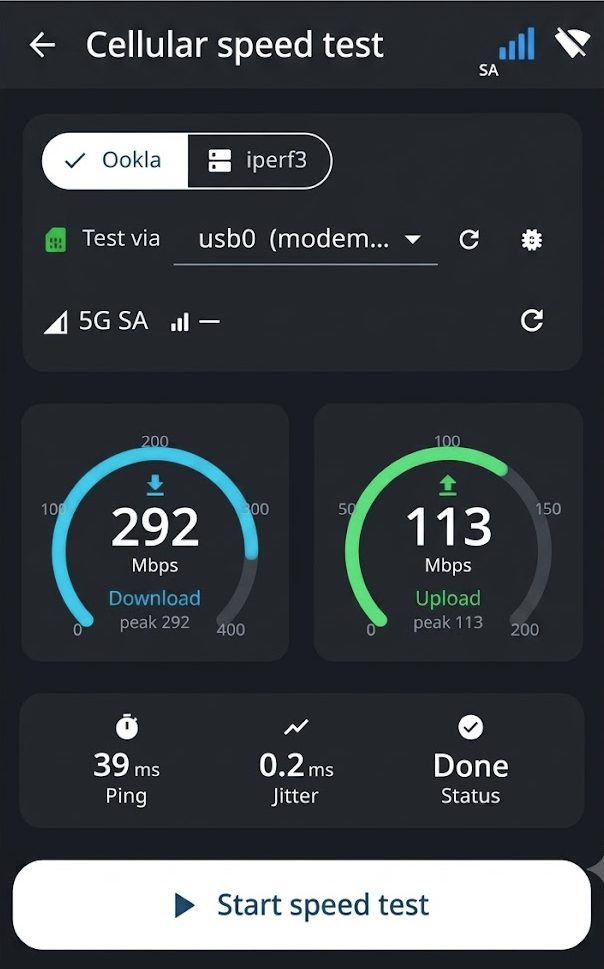

- Speedtest (Ookla/iper3)
- Force locking: PCI, Band and Mode (All bands supported)

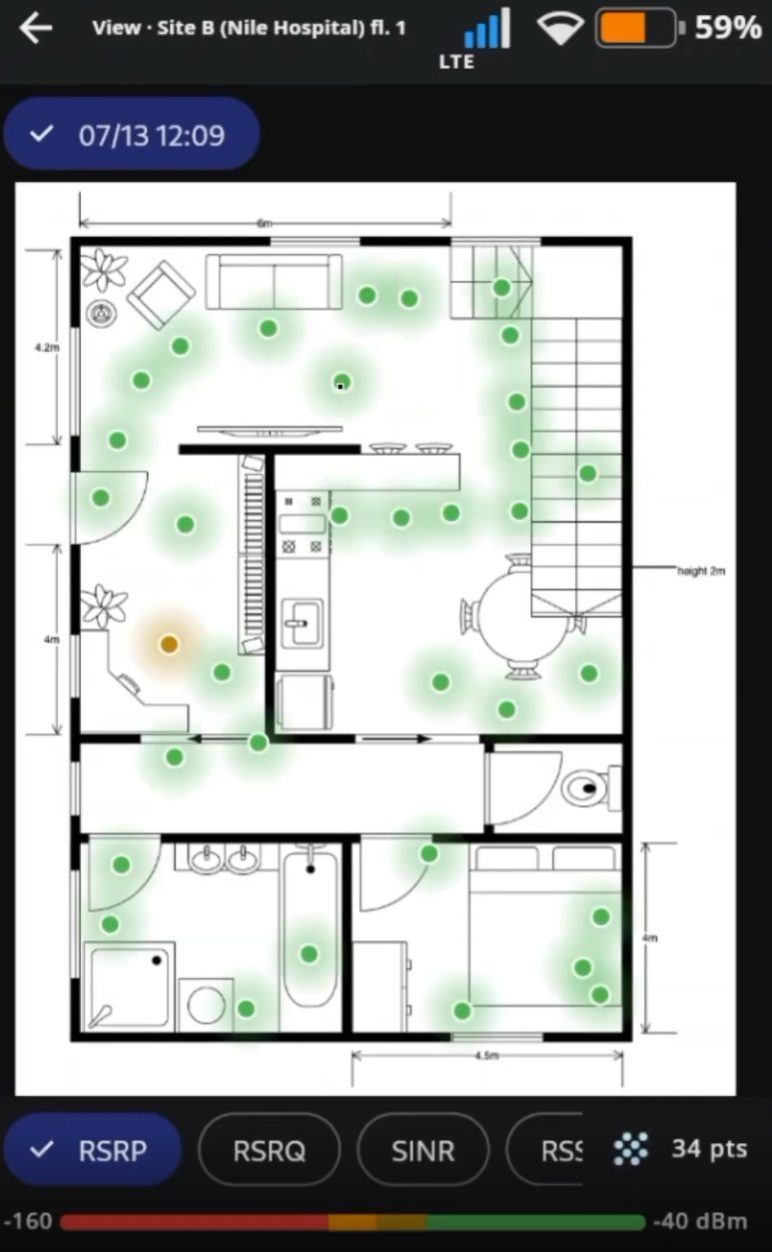

- Indoor and outdoor floor plan import for coverage plot
- N-SSAI Gadget for 5G SA
- Post processing SW tool for indoor and outdoor measurement reports

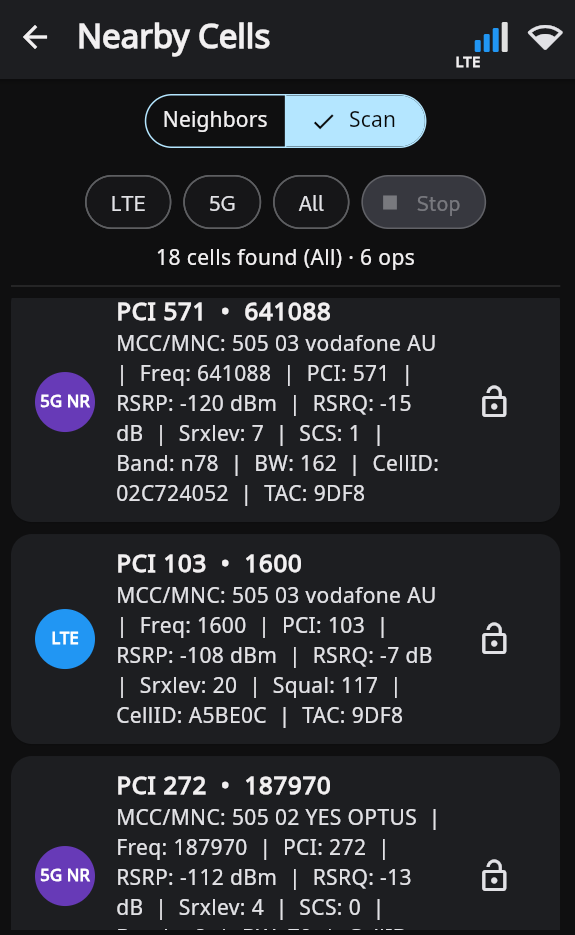

- List of available cells from all networks
- Min/Max/Avg indicators on Gauge view
- Display of Cell-ID, E/ARFCN, 5G mode, Band, NCI/NCGI, ECI/ECGI and more

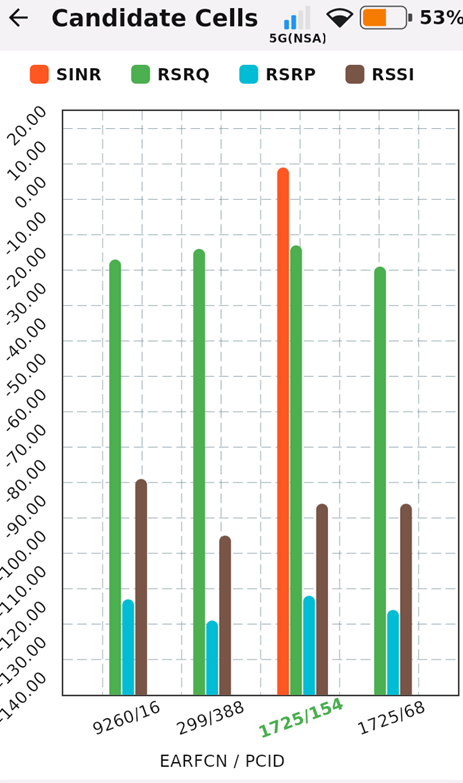

- Candidate Cells in the neighbourhood
- Signal per port view
- Adjustable Pass/Fail/Marginal thresholds with beeper

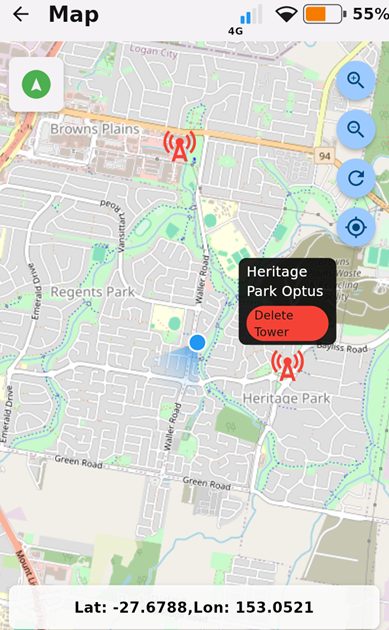

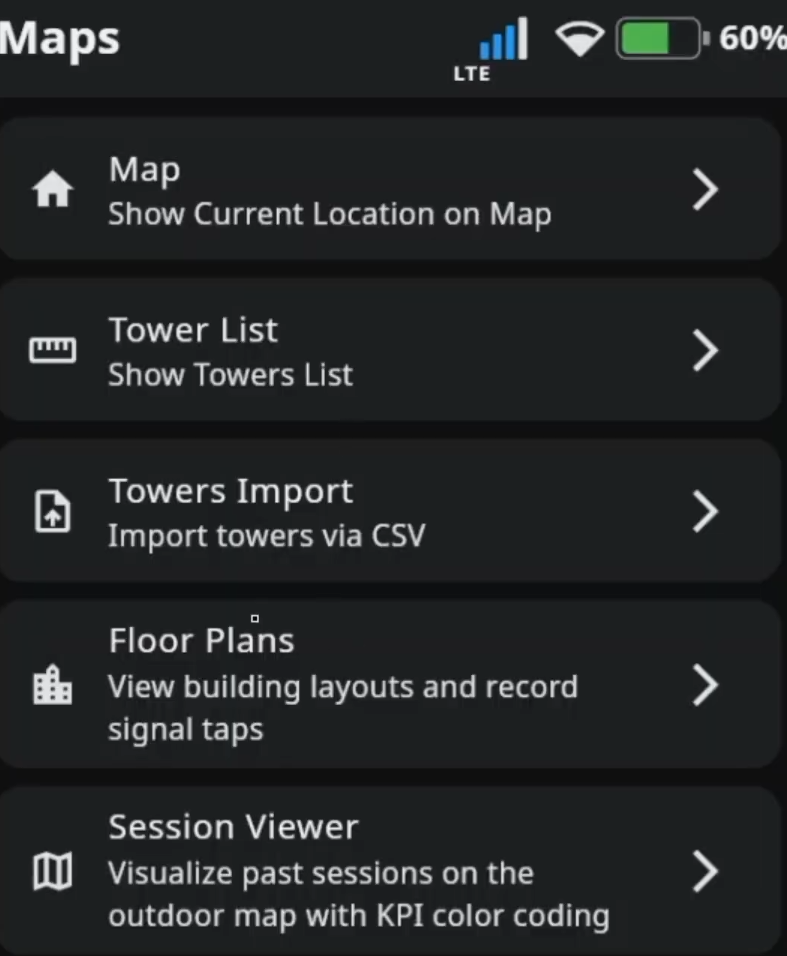

- Maps with GNSS Antenna port
- Import list of towers to display on the map
- Logging of KPIs during walk/drive test with coordinates and timestamps
- Compass, Bearing and Tower List
- Adjustable logging rate for signal levels and coordinates

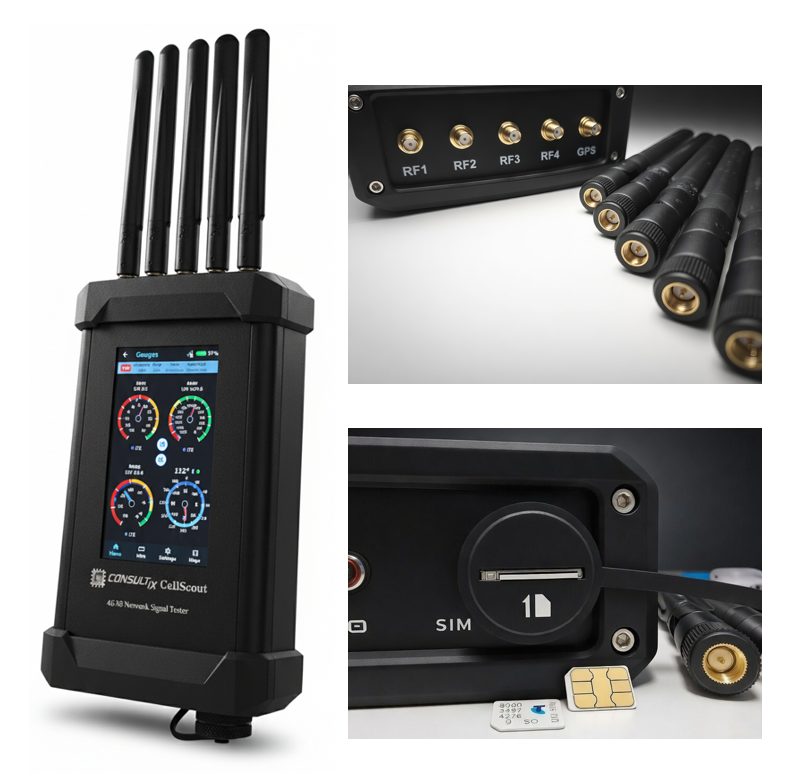

- Support for 4×4 MIMO with 4 Antennas
- Custom fields with touchscreen keypad (Antenna Gain, Site ID, Technician ID…. Etc)
- Battery Operated 5hrs+
- 5” Touchscreen Display, Splashproof IP65 housing
- Results export in CSV format

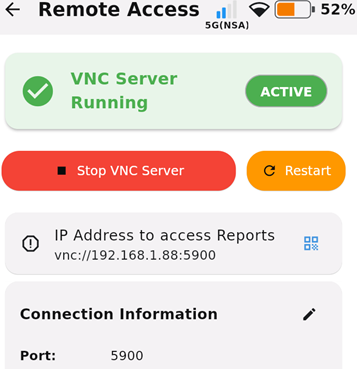

- WiFi and Built-in VNC for remote access/control
- QR code for instantaneous test results, easy to scan and share
- Lightweight: 1Kg
- OTA firmware updates
- Local stock and support
